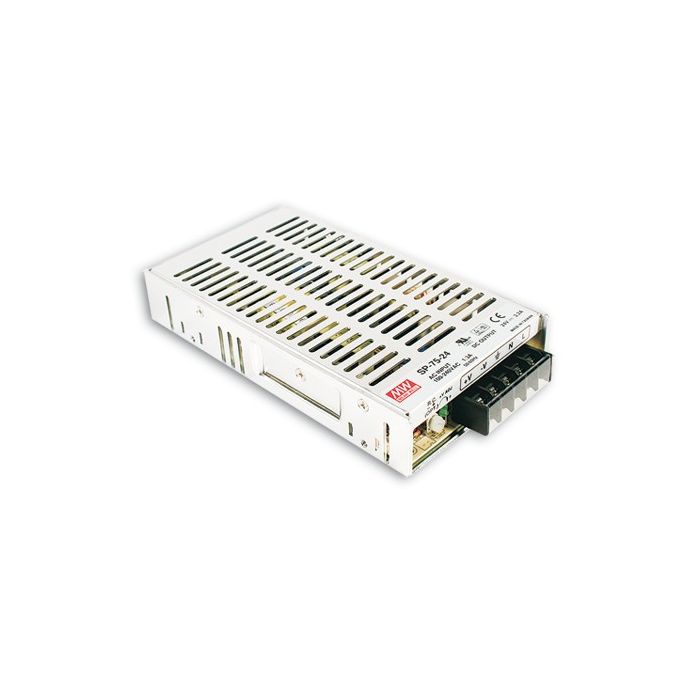

GESCHAKELDE VOEDING SINGLE OUTPUT 75W 12V/6,25A

MODEL SP-75-12

OUTPUT:
DC VOLTAGE 12V
RATED CURRENT 6.25A
CURRENT RANGE 0 ~ 6.25A
RATED POWER 75W
RIPPLE & NOISE (max.) 80mVp-p
OUTPUT VOLTAGE ADJ. RANGE 11.4 ~ 13.2V
VOLTAGE TOLERANCE +/-2.0%
LINE REGULATION +/-0.5%
LOAD REGULATION +/-0.5%
SETUP, RISE TIME 600ms, 60ms at full load
HOLD TIME (Typ.) 36ms at full load

INPUT:
VOLTAGE RANGE 85 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY(Typ.) 77%
AC CURRENT (Typ.) 0.7A/230VAC
INRUSH CURRENT (Typ.) COLD START 30A/230VAC
LEAKAGE CURRENT <2mA / 240VAC

PROTECTION:
OVER LOAD 105 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is
OVER VOLTAGE 13.8 ~ 16.2V Protection type : Hiccup mode, recovers automatically after fault condition is removed

Dimensions 179*97*33mm (L*W*H)
