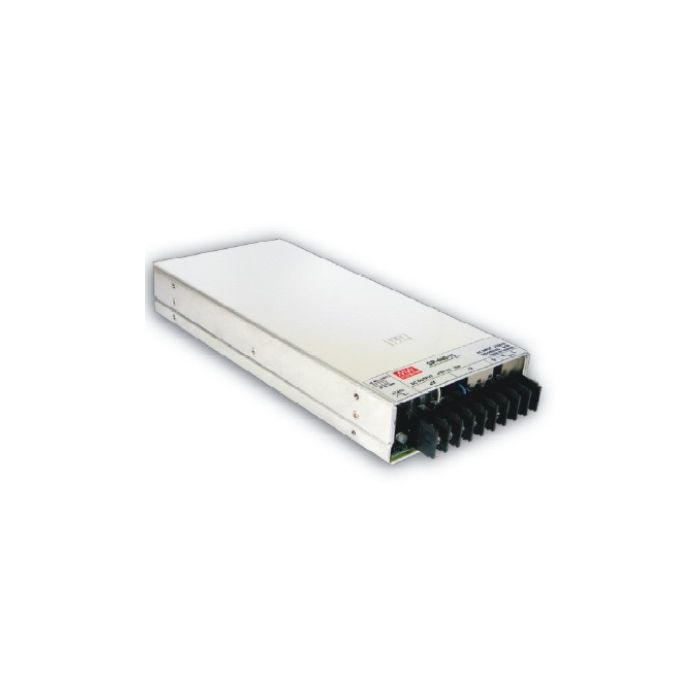

GESCHAKELDE VOEDING SINGLE OUTPUT 480W 48V/10A

Universal AC input / Full range
Built in active PFC function, PF>0.95
Protections: Short circuit / Overload / Over voltage / Over temperature
Forced air cooling by built-in DC fan
High power density 5.18w/in
Low profile:43mm thickness
Built-in remote ON-OFF control
Built-in remote sense function
Active AC surge current limiting

MODEL SP-480-48


OUTPUT:
DC VOLTAGE 48V
RATED CURRENT 10A
CURRENT RANGE 0 ~ 11A
RATED POWER 480W
RIPPLE & NOISE (max.) 240mVp-p
OUTPUT VOLTAGE ADJ. RANGE 41 ~ 56V
VOLTAGE TOLERANCE +/-1.0%
LINE REGULATION +/-0.2%
LOAD REGULATION +/-0.5%
SETUP, RISE TIME 1000ms, 80ms at full load
HOLD TIME (Typ.) 18ms at full load

INPUT:
VOLTAGE RANGE 85 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY(Typ.) 89%
AC CURRENT (Typ.) 3.5A/230VAC
INRUSH CURRENT (Typ.) 40A/230VAC
LEAKAGE CURRENT <2mA / 240VAC

PROTECTION:
OVER LOAD 11.55 ~ 14.85A rated output power
OVER VOLTAGE 57.6 ~ 67.2V Protection type : Shut down o/p voltage, re-power on to recover.

Dimensions 278*127*43mm (L*W*H)
