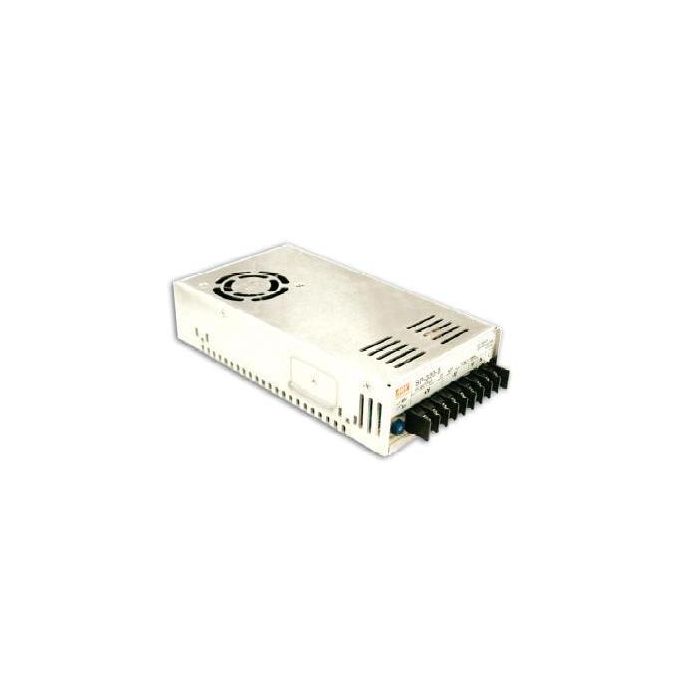

GESCHAKELDE VOEDING SINGLE OUTPUT 321W 48V/6.7A

Universal AC input / Full range
Built-in active PFC function, PF>0.95
Protections: Short circuit / Overload / Over voltage / Over temperature
Forced air cooling by built-in DC Fan
Built-in fan speed control
Fixed switching frequency at 100KHz

MODEL SP-320-48


OUTPUT:
DC VOLTAGE 48V
RATED CURRENT 6.7A
CURRENT RANGE 0 ~ 6.7A
RATED POWER 321.6W
RIPPLE & NOISE (max.) 240mVp-p
OUTPUT VOLTAGE ADJ. RANGE 20 ~ 26.4V
VOLTAGE TOLERANCE +/-1.0%
LINE REGULATION +/-0.2%
LOAD REGULATION +/-0.5%
SETUP, RISE TIME 800ms, 50ms at full load
HOLD TIME (Typ.) 16ms at full load

INPUT:
VOLTAGE RANGE 85 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY(Typ.) 89%
AC CURRENT (Typ.) 2.5A/230VAC
INRUSH CURRENT (Typ.) 40A/230VAC
LEAKAGE CURRENT <1mA / 240VAC

PROTECTION:
105 ~ 135% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed

OVER VOLTAGE 57.6 ~ 67.2V Protection type : Shut down o/p voltage, re-power on to recover.

Dimensions 215*115*50mm (L*W*H)
