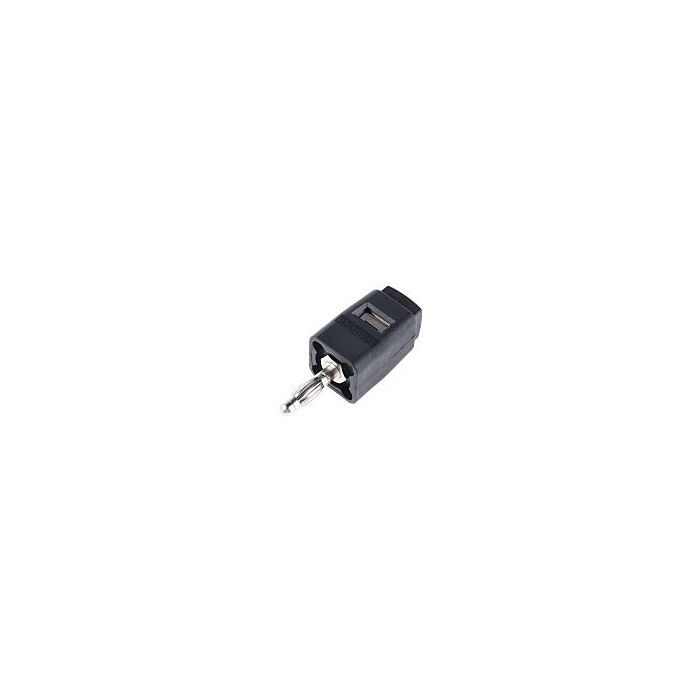

SNELKOPPELING 4MM BANAAN ZWART

€ 7,95 € 6,57

Artikelnummer

SDK502/ZW

Stekker

Toon meer Toon minder

Features

• For plugging into Ø 4mm sockets
• Terminal 4mm lamella basket
Colours: black, red, blue, yellow and green

Technical Specifications



Contacts:	Ni-plated
Insulating Parts:	PA 6.6 (Polyamid)
Colours:	see Price Table
Max. Transition Resistance
ESD6554_, ESD498_:	5mOhm
SDK502_:	3mOhm
Max. Torque for the Fastening Nuts:
ESD6554_:	30Ncm
ESD498_:	45Ncm
SDK502_:	-
Rated Current:
ESD6554_:	5A
ESD498_, SDK502_:	16A
Rated Voltage:	33V AC / 70V DC
Operating Temperature Range:	-25°C...+90°C
