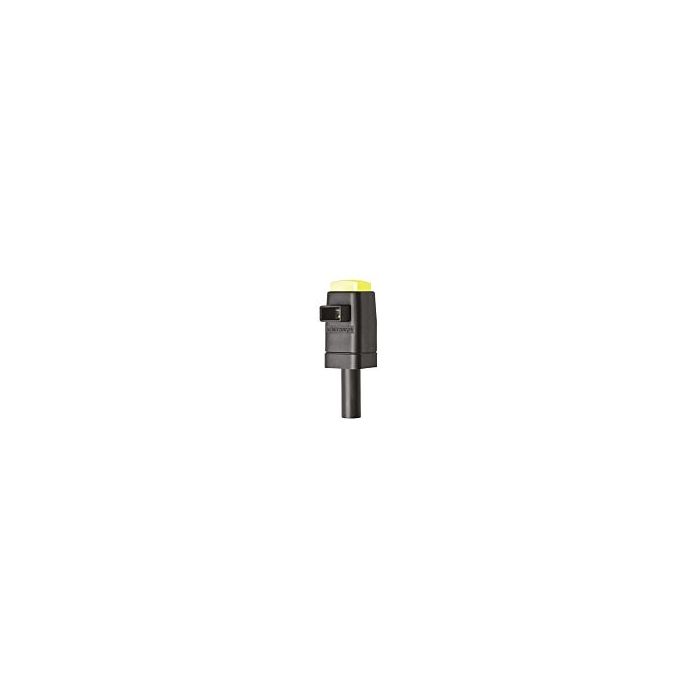

SNELKOPPELING 4MM BANAAN VEILIGHEID GEEL
€ 11,95
€ 9,88
Artikelnummer
SDK799/GL
- ArtikelnummerSDK799/GL
- MerkSCHUTZINGER
- Aantal 5+ € 10,76 € 8,89
Features
| • To plug in a Ø 4mm safety socket • Insertion window: 8x4mm • Terminal: socket • Colours: black, red, blue, yellow and green |
| Technical Specifications |
| Contact Parts | Ni-plated |
| Insulation: | PA 6.6 (Polyamid) |
| Max. Torque for Nuts | |
| ESD789_: | 85Ncm |
| SDK799_: | - |
| SDK5230_: | 120Ncm |
| Spring Force: | 20N |
| Max. Transition Resistance: | 3mOhm |
| SDK5230_: | 5mOhm |
| Rated Current: | 16A |
| Rated Voltage: | 300V (Cat. II) |
| Operating Temperature Range: | -25°C...+90°C |
 |
|
