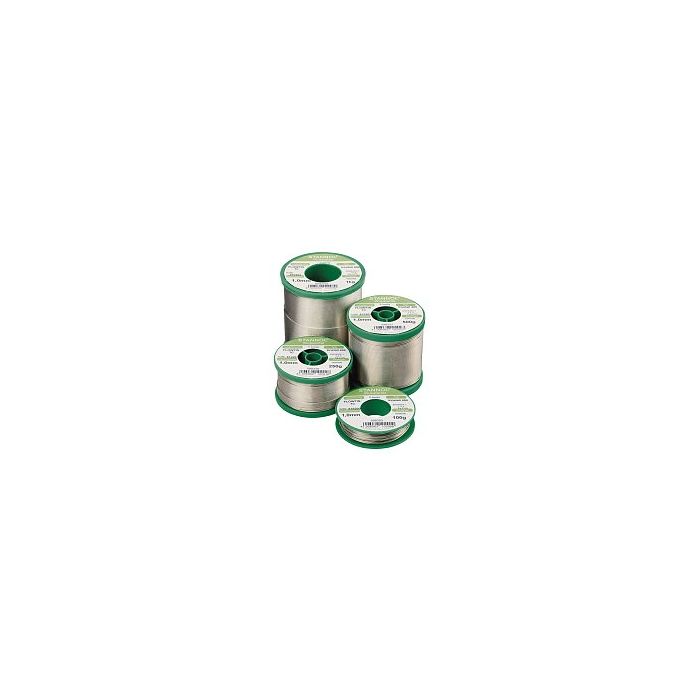

SOLDEERTIN 1000GR 0.7MM SN60/PB29/CU1
€ 119,00
€ 98,35
Artikelnummer
SLV51/1007
- ArtikelnummerSLV51/1007
- MerkSTANNOL
- Aantal 5+ € 107,10 € 88,51
Features
Halide-activated resin fluxes
High activity, good spread and high residue reliability
Optimal wetting and spreading properties
Shiny solder joints with minimal flux residues
Flux residues - can be left on the PCB
Soldering operations on transformers and soldering copper cables with large cross sections
When a stronger flux is needed due to the high termal capacity of the components that require soldering
Hand and robot soldering
Technical Specifications
Melting Range: 183...190°C
Flux Type (IEC 61190-1-3 ROM1): 1.1.2.B
Flux Content: 2,2%
Corrosive Effects (DIN 8516): None
Alloy (ISO 9453:2006): S-Sn60Pb39Cu1
Flux Core: 5 Core
Halide-activated resin fluxes
High activity, good spread and high residue reliability
Optimal wetting and spreading properties
Shiny solder joints with minimal flux residues
Flux residues - can be left on the PCB
Soldering operations on transformers and soldering copper cables with large cross sections
When a stronger flux is needed due to the high termal capacity of the components that require soldering
Hand and robot soldering
Technical Specifications
Melting Range: 183...190°C
Flux Type (IEC 61190-1-3 ROM1): 1.1.2.B
Flux Content: 2,2%
Corrosive Effects (DIN 8516): None
Alloy (ISO 9453:2006): S-Sn60Pb39Cu1
Flux Core: 5 Core
