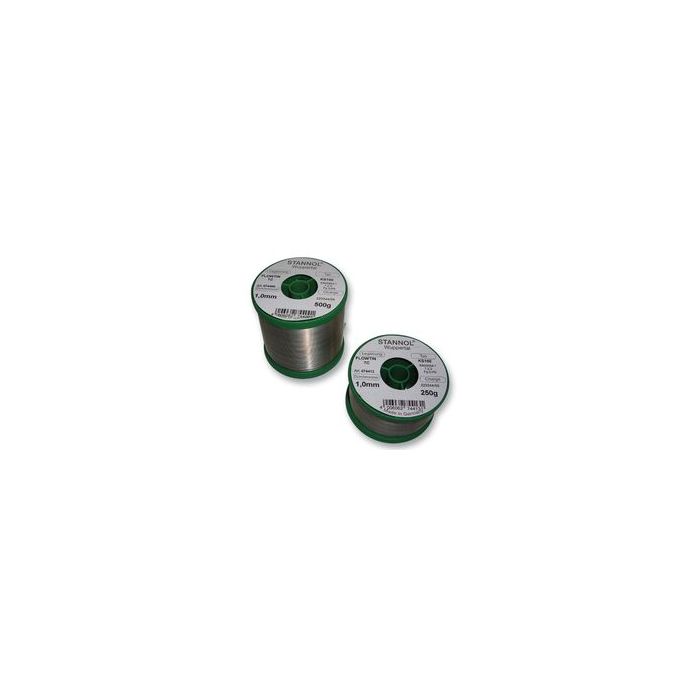

SOLDEERTIN 500GR 1.0MM SN99CU1 VLOEIMIDDEL 3,0% HALOGEENVRIJ

Features
• Halide-free activated
• developed to cope with the higher process temperatures at lead-free soldering
• very low spitting of flux
• with micro doted alloys for the low solder tip consumption
• High activity, good spread and high residue reliability
• Flux residues - can be left on the PCB
• Hand and robot soldering
• Electronic and Electrical industry

Technical Specifications
Melting Point: 227°C
Flux Type (IEC 61190-1-3 REL0): 1.2.3.B
Flux Content (EN 12224): 3%
Corrosive Effects (DIN 8516): None
Alloy(FLOWTIN TC): Sn99Cu1
Flux Core: 1 Core
