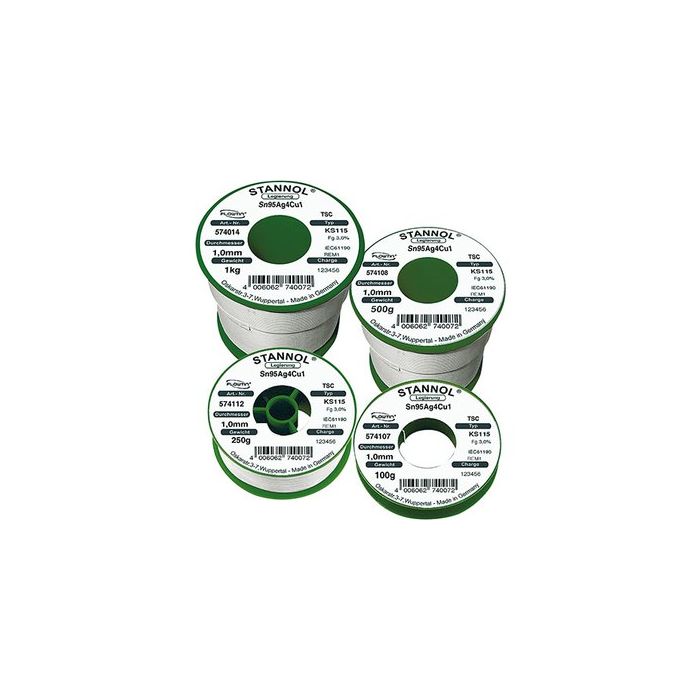

SOLDEERTIN 500GR 1.0MM SN95AG4CU1 VLOEIMIDDEL 3,0%
€ 129,00
€ 106,61
Artikelnummer
SLV24/1005
- ArtikelnummerSLV24/1005
- MerkSTANNOL
- Aantal 5+ € 116,09 € 95,94
Features
Halide activated
developed to cope with the higher process temperatures at lead-free soldering
very low spitting of flux
with micro doted alloys for the low solder tip consumption
High activity, good spread and high residue reliability
Flux residues - can be left on the PCB
Hand and robot soldering
Electronic and Electrical industry
Technical Specifications
Melting Point: 217°C
Flux Type (IEC 61190-1-3 REM1): 1.2.2.B
Flux Content (EN 12224): 3%
Corrosive Effects (DIN 8516): None
Alloy (FLOWTIN TSC): Sn95Ag4Cu1/713
Flux Core: 1 Core
Halide activated
developed to cope with the higher process temperatures at lead-free soldering
very low spitting of flux
with micro doted alloys for the low solder tip consumption
High activity, good spread and high residue reliability
Flux residues - can be left on the PCB
Hand and robot soldering
Electronic and Electrical industry
Technical Specifications
Melting Point: 217°C
Flux Type (IEC 61190-1-3 REM1): 1.2.2.B
Flux Content (EN 12224): 3%
Corrosive Effects (DIN 8516): None
Alloy (FLOWTIN TSC): Sn95Ag4Cu1/713
Flux Core: 1 Core
