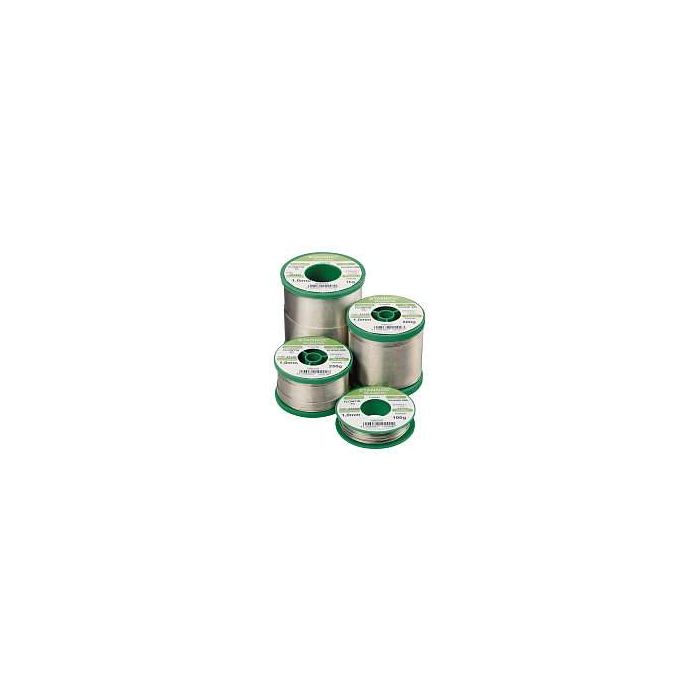

SOLDEERTIN 500GR 0.5MM SN95AG4CU1 VLOEIMIDDEL 3,0% HALOGEENVRIJ
€ 149,00
€ 123,14
Artikelnummer
SLV22/0505
- ArtikelnummerSLV22/0505
- MerkSTANNOL
- Aantal 5+ € 134,09 € 110,82
Halide-free activated
developed to cope with the higher process temperatures at lead-free soldering
very low spitting of flux
with micro doted alloys for the low solder tip consumption
High activity, good spread and high residue reliability
Flux residues - can be left on the PCB
Hand and robot soldering
Electronic and Electrical industry
Technical Specifications
Melting Point: 217°C
Flux Type (IEC 61190-1-3 REL0): 1.2.3.B
Flux Content (EN 12224): 3%
Corrosive Effects (DIN 8516): None
Alloy(FLOWTIN TSC): Sn95Ag4Cu1/713
Flux Core: 1 Core
developed to cope with the higher process temperatures at lead-free soldering
very low spitting of flux
with micro doted alloys for the low solder tip consumption
High activity, good spread and high residue reliability
Flux residues - can be left on the PCB
Hand and robot soldering
Electronic and Electrical industry
Technical Specifications
Melting Point: 217°C
Flux Type (IEC 61190-1-3 REL0): 1.2.3.B
Flux Content (EN 12224): 3%
Corrosive Effects (DIN 8516): None
Alloy(FLOWTIN TSC): Sn95Ag4Cu1/713
Flux Core: 1 Core
