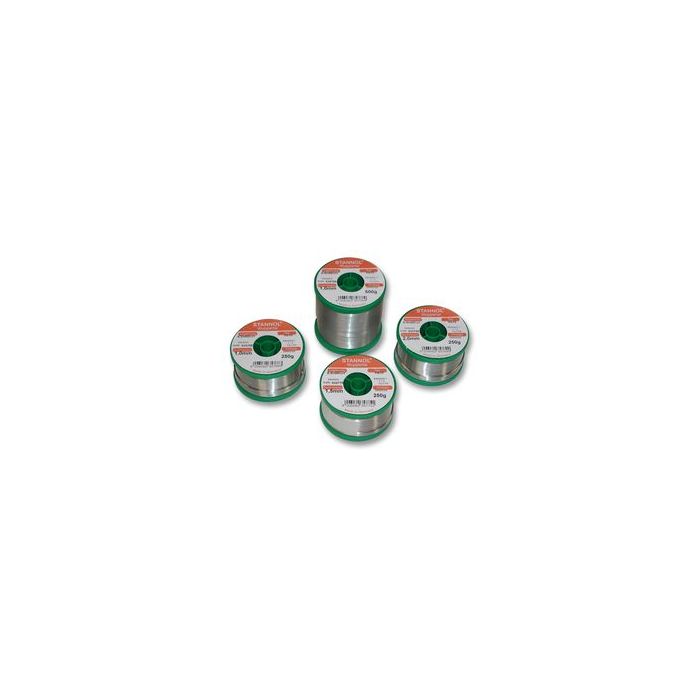

SOLDEERTIN 500GR 1.0MM SN99CU1 VLOEIMIDDEL 2,0%
€ 82,50
€ 68,18
Artikelnummer
SLV16/1005
- ArtikelnummerSLV16/1005
- MerkSTANNOL
- Aantal 5+ € 74,25 € 61,36
Halide-activated natural resin fluxes
High activity, good spread and high residue reliability
High spread speed
Soldering points are glossy with few bright flux residues
Flux residues - can be left on the PCB
For soldering transformers and soldering copper cables with large cross sections
For soldering which requires a strong fluxing agent due to the extreme heat capacity of the component
Hand and robot soldering
Technical Specifications
Melting Point: 217°C
Flux Type (IEC 61190-1-3 ROM1): 1.1.2.B
Flux Content: 2,0%
Corrosive Effects (DIN 8516): None
Alloy (ISO 9453:2006): Sn99Cu1/TC
Flux Core: 1 Core
High activity, good spread and high residue reliability
High spread speed
Soldering points are glossy with few bright flux residues
Flux residues - can be left on the PCB
For soldering transformers and soldering copper cables with large cross sections
For soldering which requires a strong fluxing agent due to the extreme heat capacity of the component
Hand and robot soldering
Technical Specifications
Melting Point: 217°C
Flux Type (IEC 61190-1-3 ROM1): 1.1.2.B
Flux Content: 2,0%
Corrosive Effects (DIN 8516): None
Alloy (ISO 9453:2006): Sn99Cu1/TC
Flux Core: 1 Core
