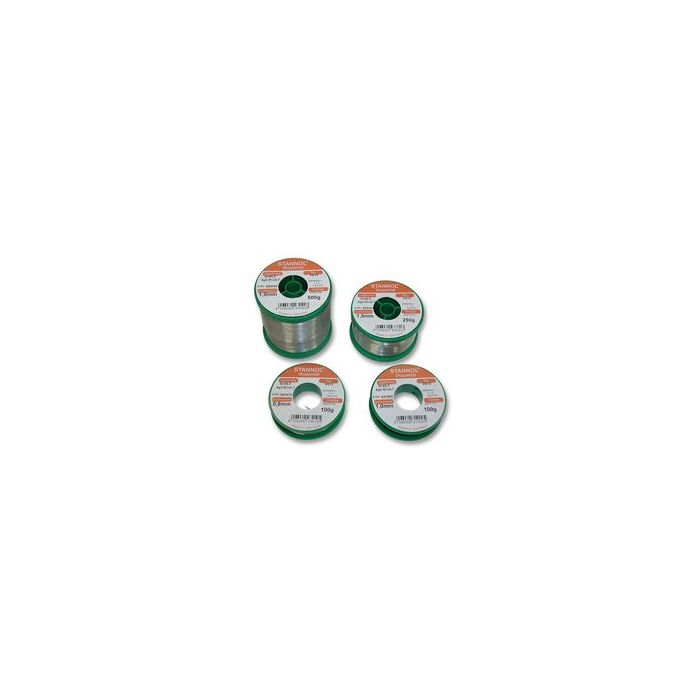

SOLDEERTIN 250GR 1.0MM SN95AG4CU1 VLOEIMIDDEL 2,0%
€ 64,51
€ 53,31
Artikelnummer
SLV11/1002
- ArtikelnummerSLV11/1002
- MerkSTANNOL
- Aantal 5+ € 58,04 € 47,97
halide-activated natural resin flux
high activity, good spread and high residue reliability
high spread speed
soldering points are glossy with few bright flux residues
flux residues - can be left on the PCB
for soldering transformers and soldering copper cables with large cross sections
for soldering which requires a strong fluxing agent due to the extreme heat capacity of the component
hand and robot soldering
melting point: 217°C
flux type (IEC 61190-1-3 ROM1): 1.1.2.B
flux content: 2%
corrosive effects (DIN 8516): None
alloy (ISO 9453:2006): S-Sn95Ag4Cu1/713
flux core: 1 core
high activity, good spread and high residue reliability
high spread speed
soldering points are glossy with few bright flux residues
flux residues - can be left on the PCB
for soldering transformers and soldering copper cables with large cross sections
for soldering which requires a strong fluxing agent due to the extreme heat capacity of the component
hand and robot soldering
melting point: 217°C
flux type (IEC 61190-1-3 ROM1): 1.1.2.B
flux content: 2%
corrosive effects (DIN 8516): None
alloy (ISO 9453:2006): S-Sn95Ag4Cu1/713
flux core: 1 core
