SPEAKER BREEDBAND 200-5000HZ 8OHM 20W/30W 83X83MM WATERBESTENDIG
€ 12,95
€ 10,70
Artikelnummer
SL87WPM/8
- ArtikelnummerSL87WPM/8
- MerkVISATON
- Aantal 5+ € 12,29 € 10,16

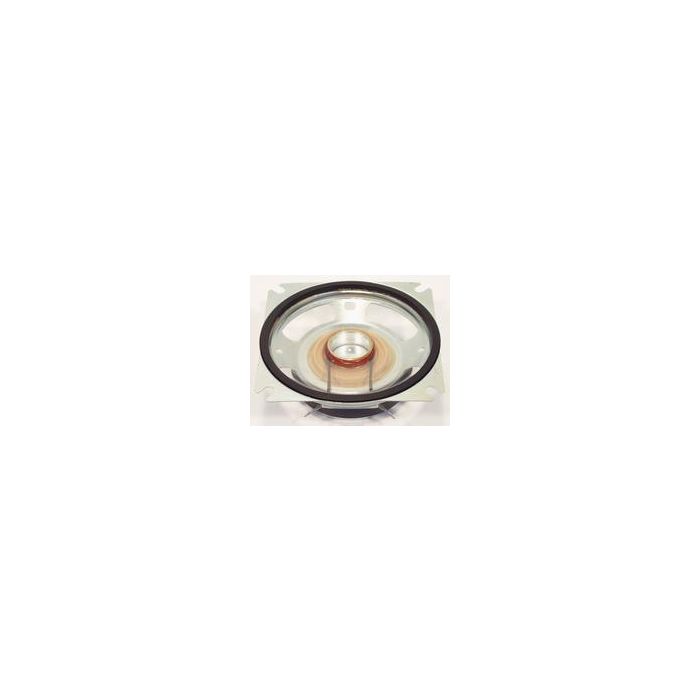

Waterproof 8 cm (3.3\") fullrange speaker with a transparent plastic cone and rubber sealing ring. High mean sound pressure level and compact design. Optimised for voice and signal output.
Typical applications:
- Control speaker for electronic devices
- Outdoor sound reinforcement systems
Attributes:
- UV-resistant
- weather-resistant
Rated power 20 W
Maximum power 30 W
Nominal impedance Z 8 Ohm
Frequency response 2005000 Hz
Mean sound pressure level 89 dB (1 W/1 m)
Opening angle (-6 dB) 142°/4000 Hz
Excursion limit +/−1,5 mm
Resonance frequency fs 290 Hz
Magnetic induction 0,87 T
Magnetic flux 165 µWb
Height of front pole-plate 3 mm
Voice coil diameter 20 mm
Height of winding 5 mm
Cutout diameter 80 mm
Net weight 0,24 kg
Protective system IP 65 *)
Temperature range −40 ... 70 °C
Typical applications:
- Control speaker for electronic devices
- Outdoor sound reinforcement systems
Attributes:
- UV-resistant
- weather-resistant
Rated power 20 W
Maximum power 30 W
Nominal impedance Z 8 Ohm
Frequency response 2005000 Hz
Mean sound pressure level 89 dB (1 W/1 m)
Opening angle (-6 dB) 142°/4000 Hz
Excursion limit +/−1,5 mm
Resonance frequency fs 290 Hz
Magnetic induction 0,87 T
Magnetic flux 165 µWb
Height of front pole-plate 3 mm
Voice coil diameter 20 mm
Height of winding 5 mm
Cutout diameter 80 mm
Net weight 0,24 kg
Protective system IP 65 *)
Temperature range −40 ... 70 °C
