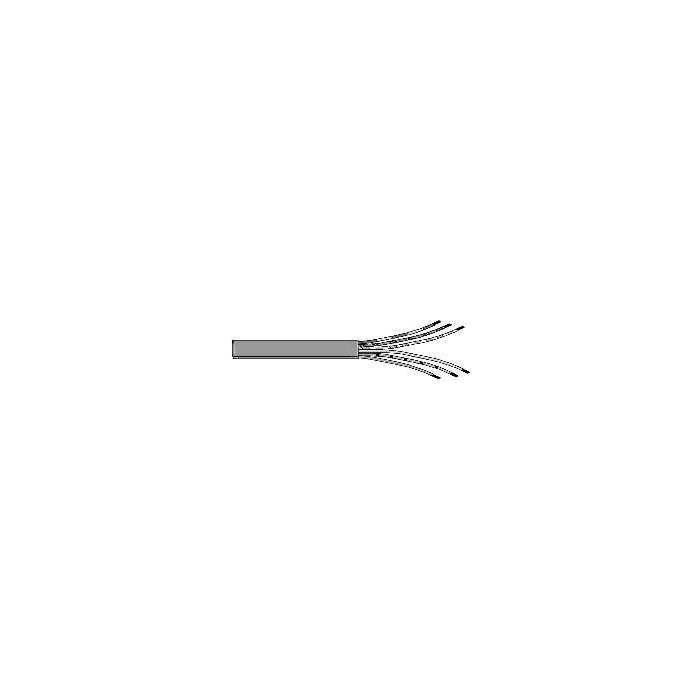

STUURKABEL 4X0.14MM2 GRIJS

Features
Conductor Insulation: PVC YI 2
Conductor Colours: DIN 47 100
Conductor Composition: 18x0,10mm
Outer Jacket: PVC YM 2
Colour: Grey (RAL 7032)
Flammability: Flame Resistant IEC332.1

Technical Specifications
Rated Voltage: 300V
Test Voltage: 1,2kV
Temperature Range Moving: -10...+70°C
Temperature Range Stationary: -20...+70°C
Insulation Resistance, Min.: 100MWxkm
Conductor Resistance, Max.: 135W/km
Cross-Section OuterØ [mm2] 4x0,14
OuterØ [mm] 3,50 ±0,15
