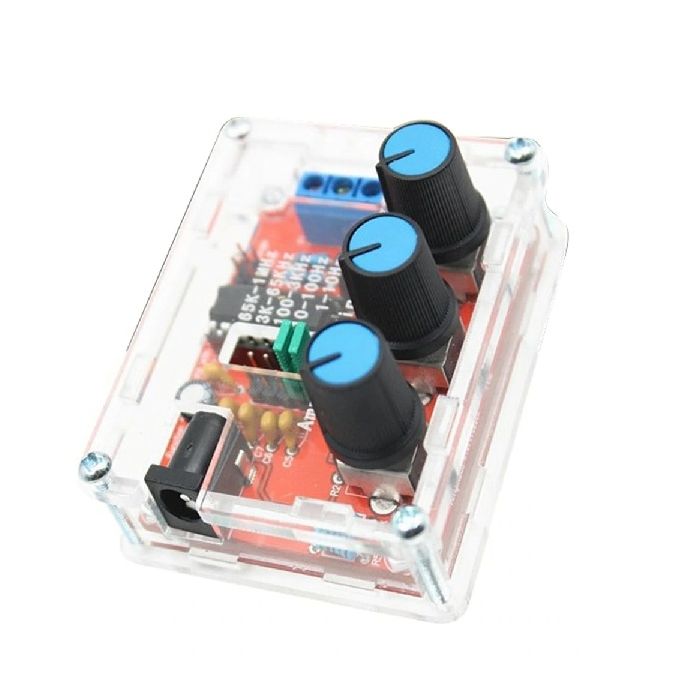

SIGNAAL GENERATOR XR2206 BOUWPAKKET
€ 12,50
€ 10,33
Artikelnummer
KXR2206
- ArtikelnummerKXR2206
- MerkBrand
- Aantal 5+ € 11,24 € 9,29
Specification:
Voltage Supply: 9-12V DC Input
Waveforms: Square, Sine & Triangle
Impedance: 600 Ohm + 10%
Frequency: 1Hz - 1MHz
SINE WAVE
Amplitude: 0 - 3V at 9V DC input
Distortion: Less than 1% (at 1kHz)
Flatness: +0.05dB 1Hz - 100kHz
SQUARE WAVE
Amplitude: 8V (no load) at 9V DC input
Rise Time: Less than 50ns (at 1kHz)
Fall Time: Less than 30ns (at 1kHz)
Symmetry: Less than 5% (at 1kHz)
TRIANGLE WAVE
Amplitude: 0 - 3V at 9V DC input
Linearity: Less than 1% (up to 100kHz) 10mA
Package Included:
1 x Signal Generator DIY Kit with Case
