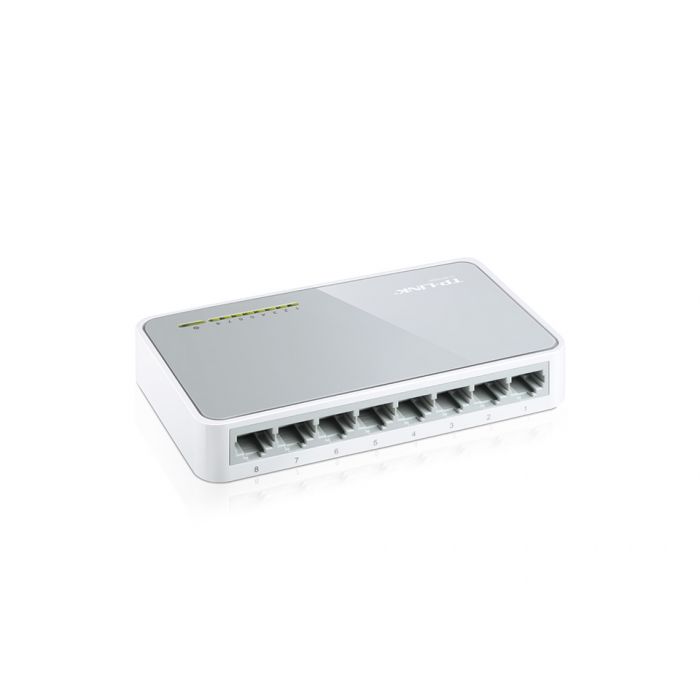

SWITCH 10/100MB 8 POORT UTP

TL-SF1008D Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. The Switch is Plug-and-Play and each port can be used as general ports or Uplink ports and can be simply plugged into a server, a hub or a switch.

Interfaces/Ports
Ethernet Port: Yes
Fast Ethernet Port: Yes
Interfaces/Ports: 8 x RJ-45 10/100Base-TX Network LAN
Number of Ports: 8
Media & Performance
Forwarding/Filtering Rate: 149 Kpps
Switching Throughput: 1.60 Gbps
Miscellaneous
Additional Information: Features:

•CSMA/CD
•TCP/IP
•Supports IEEE802.3x flow control for Full Duplex mode and back pressure for Half Duplex mode
•Supports MAC address auto-learning and auto-aging
•LED indicators for monitoring power, link, activity

Form Factor: Desktop
Form Factor: Wall Mountable
Network & Communication
Layer Supported: 2
Physical Characteristics
Depth: 86.0 mm
Form Factor: Desktop
Form Factor: Wall Mountable
Height: 28.0 mm
Width: 140.0 mm
Product Information
Form Factor: Desktop
Form Factor: Wall Mountable
Width: 140.0 mm
