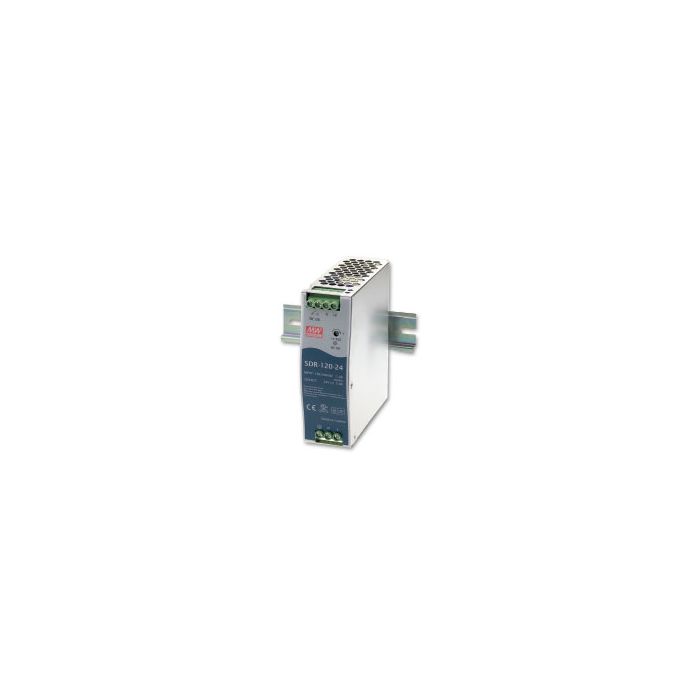

DIN-RAIL VOEDING 120W 24V/5A

High efficiency 91% and low power dissipation
Built-in active PFC function, PF>0.93
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
UL 508 (industrial control equipment) approved
EN61000-6-2(EN50082-2) industrial immunity level
100% full load burn-in test
150% peak load capability
Built-in DC OK relay contact

Technical Specifications
Input Voltage: 88 ~ 264VAC 124 ~ 370VDC
Input Inrush Current, Max.: 70A

uitgangsspanning: 24V +/-1.0%
uitgangsstroom: 5A
max. vermogen: 120W
afmetingen: 40 x 125,2 x 113,5mm
gewicht: 670g
werktemperatuur: -25°C ~ 70°C
