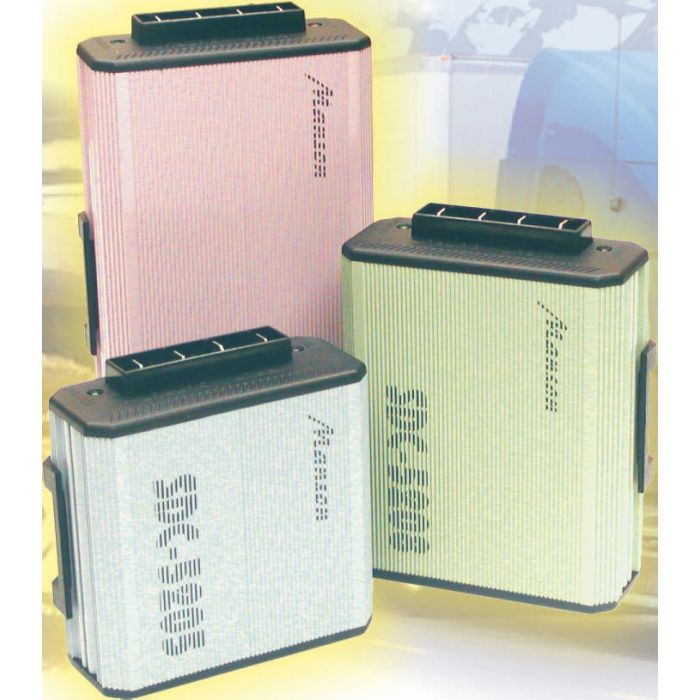

OMVORMER 24VDC-13.8VDC 12A GESCHAKELD
€ 69,95
€ 57,81
Artikelnummer
SDC5212
- ArtikelnummerSDC5212
- MerkMANSON
- Aantal 5+ € 62,94 € 52,02
Models SDC-5212
Input Voltage Range 18V to 38V DC
Output Voltage 13.8V DC
Continuous Output Current 12A
Maximum Output Current 16A
at 30% Duty Cycle
No Load Current <50mA
Ripple & Noise (p-p) 100mV
Ripple & Noise (r.m.s.) 15mV
Load Regulation 50mV
Line Regulation 50mV
Efficiency >90%
Protections OVP (Ouput Over-Vltage Protection),
Loss of Earth Protection
Self Reset Protections : a) Reverse Polarity
Protection ; b) Overload Protection ;
c) Short Circuit Protection
Indications Green LED-OPERATE and Red LED-FAULT
Input & Output Connection type Push-on Flat Blade Connectors
Cooling System Natural Convection
Max. Operating Temperature 50 C
Internal Input Fuse (glass type) 20A
Approvals e-mark
Dimension (WxHxD)142x75x32(mm)
Weight 380g
Accessory Slip-on Receptacles
