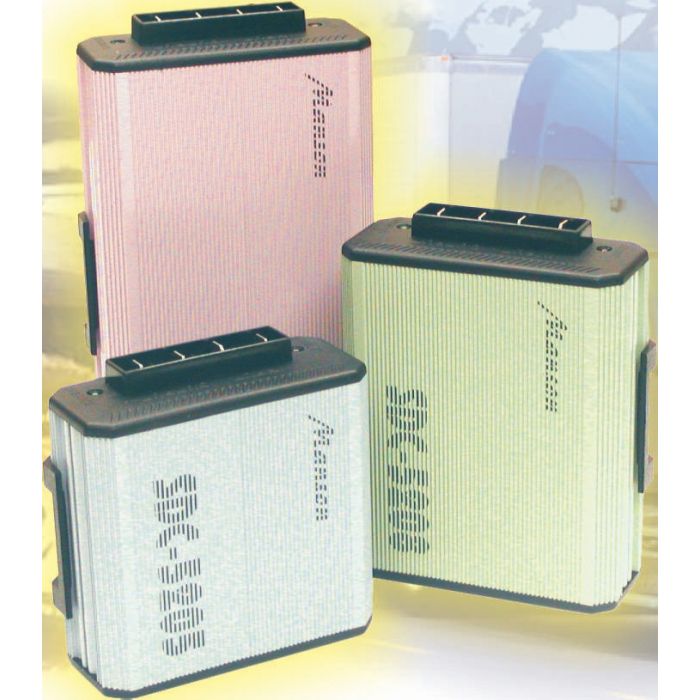

OMVORMER 24VDC-13.8VDC 10A GESCHAKELD

Models SDC-5208
Input Voltage Range 18V to 38V DC
Output Voltage 13.8V DC
Continuous Output Current 7A
Maximum Output Current 12A
at 30% Duty Cycle
No Load Current <30mA
Ripple & Noise (p-p) 100mV
Ripple & Noise (r.m.s.) 10mV
Load Regulation 50mV
Line Regulation 50mV
Efficiency >90%
Protections OVP (Ouput Over-Vltage Protection),
Loss of Earth Protection
Self Reset Protections : a) Reverse Polarity
Protection ; b) Overload Protection ;
c) Short Circuit Protection
Indications Green LED-OPERATE and Red LED-FAULT
Input & Output Connection type Push-on Flat Blade Connectors
Cooling System Natural Convection
Max. Operating Temperature 50 C
Internal Input Fuse (glass type) 10A
Approvals e-mark
Dimension (WxHxD)96x75x32(mm)
Weight 230g
Accessory Slip-on Receptacles
