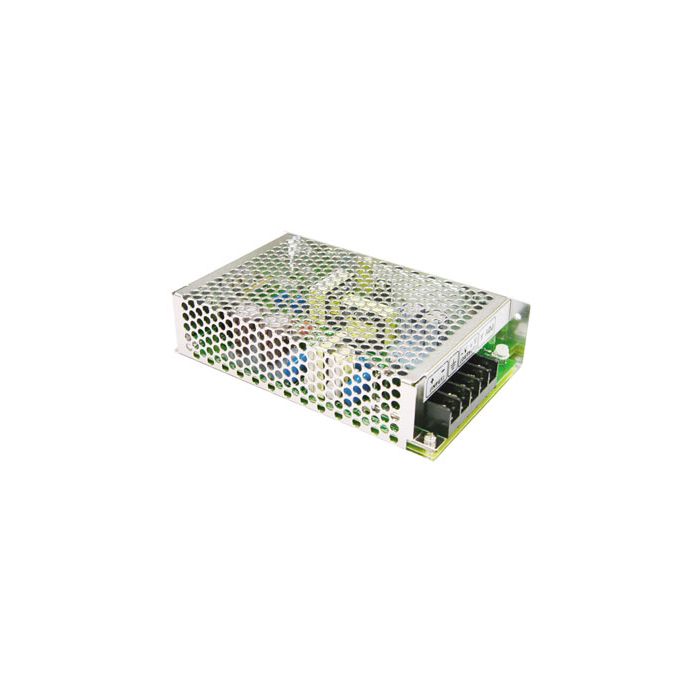

DC-DC CONVERTER 36-72V:24V 2.1A IN BEHUIZING

2:1 wide input range
Protections: Short circuit / Overload / Over voltage
1500VDC I/O isolation
Built-in EMI filter, low ripple noise
100% full load burn-in test
Fixed switching frequency at 83KHz
Low cost
High reliability

OUTPUT
DC VOLTAGE: 24V
RATED CURRENT: 2,1A
CURRENT RANGE: 0 ~ 2.1A
RATED POWER: 50.4W
RIPPLE & NOISE (max.) Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 23 ~ 30VDC
VOLTAGE TOLERANCE Note.3: +/- 1.0%
LINE REGULATION: +/- 0.2%
LOAD REGULATION: +/- 0.2%
SETUP, RISE, HOLD UP TIME: 2.5s, 50ms, ------ at full load

INPUT
VOLTAGE RANGE: 38 ~ 72VDC
INPUT EFFICIENCY (Typ.): 83%
DC CURRENT: 1.5A/48V

DIMENSION: 159x97x38mm (LxWxH)
