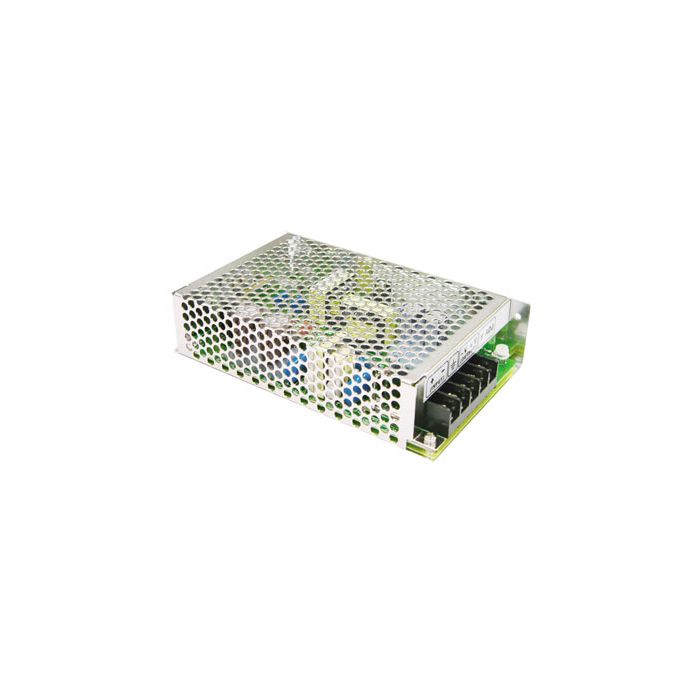

DC-DC CONVERTER 19-36V:5V 10.0A IN BEHUIZING
€ 44,95
€ 37,15
Artikelnummer
SD50B5
- ArtikelnummerSD50B5
- MerkMEANWELL
- Aantal 3+ € 40,45 € 33,43
| Features |
| • Enclosed case, screw terminals • Overload protection, pulsing hiccup shutdown, auto recovery • Wide input voltage range 2:1 • DC decoupling of input and output • Input/output insulation 1500V • Regulated output voltage • Short-circuit proof |
 |
| Technical Specifications |
|
|
| Input Voltage: | See Table |
| Over Load Protection: | 105...150% |
| Withstand Voltage | |
| I/P-O/P: | 1500V AC |
| I/P-FG: | 1500V AC |
| O/P-FG: | 500V AC |
| Operating Temperature: | -10...+60°C |
| Weight: | 480g |
| I/P = Input, O/P = Output, FG = Frame Ground |
|
|
|
| Part Nr. | UE |
UA |
IA |
PA |
Uadj |
DUA |
URN |
h |
| [V] | [V] | [A] | [W] | [V] | [%] | [mVp-p] | [%] | |
| SD-50A-5 | 9,2...18 | 5 | 0...10 | 50 | 4,5...5,5 | 2 | 100 | 70 |
| SD-50A-12 | 9,2...18 | 12 | 0...4,2 | 50,4 | 11...16 | 1 | 120 | 72 |
| SD-50A-24 | 9,2...18 | 24 | 0...2,1 | 50,4 | 23...30 | 1 | 150 | 74 |
| SD-50B-5 | 19...36 | 5 | 0...10 | 50 | 4,5...5,5 | 2 | 100 | 73 |
| SD-50B-12 | 19...36 | 12 | 0...4,2 | 50,4 | 11...16 | 1 | 120 | 75 |
| SD-50B-24 | 19...36 | 24 | 0...2,1 | 50,4 | 23...30 | 1 | 150 | 80 |
| SD-50C-5 | 36...72 | 5 | 0...10 | 50 | 4,5...5,5 | 2 | 100 | 76 |
| SD-50C-12 | 36...72 | 12 | 0...4,2 | 50,4 | 11...16 | 1 | 120 | 78 |
| SD-50C-24 | 36...72 | 24 | 0...2,1 | 50,4 | 23...30 | 1 | 150 | 83 |
| UE = Input Voltage, UA = Output Voltage, IA = Output Current Range, PA = Output Power, Uadj = Output Voltage Adjustment, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Efficiency | ||||||||
|
||||||||
