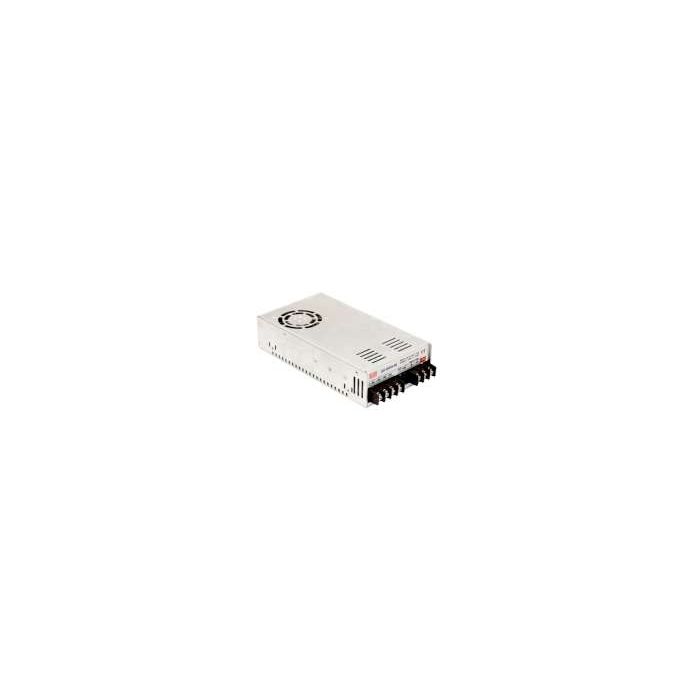

DC-DC CONVERTER 19-72V:24V 21A IN BEHUIZING
€ 209,00
€ 172,73
Artikelnummer
SD500L24
- ArtikelnummerSD500L24
- MerkMEANWELL
- Aantal 3+ € 188,09 € 155,45
DC input active surge current limiting
4:1 DC input range: 19~72VDC)
Protections: Short circuit / Overload / Over voltage / Over temperature
/ Input polarity(by fuse)
2000VAC I/O Isolation
Forced air cooling by built-in DC fan with fan speed control function
Output OK Signal
Built-in remote ON-OFF control
Built-in remote sense function
OUTPUT
DC VOLTAGE: 24V
RATED CURRENT: 21A
CURRENT RANGE: 0 ~ 21A
RATED POWER: 504W
VOLTAGE ADJ. RANGE: 23 ~ 30VDC
INPUT
VOLTAGE RANGE: 19 ~ 72VDC
DC CURRENT: 24.2A/19VDC 24.8A/24VDC 12A/48VDC
DIMENSION : 215x115x50mm
4:1 DC input range: 19~72VDC)
Protections: Short circuit / Overload / Over voltage / Over temperature
/ Input polarity(by fuse)
2000VAC I/O Isolation
Forced air cooling by built-in DC fan with fan speed control function
Output OK Signal
Built-in remote ON-OFF control
Built-in remote sense function
OUTPUT
DC VOLTAGE: 24V
RATED CURRENT: 21A
CURRENT RANGE: 0 ~ 21A
RATED POWER: 504W
VOLTAGE ADJ. RANGE: 23 ~ 30VDC
INPUT
VOLTAGE RANGE: 19 ~ 72VDC
DC CURRENT: 24.2A/19VDC 24.8A/24VDC 12A/48VDC
DIMENSION : 215x115x50mm
