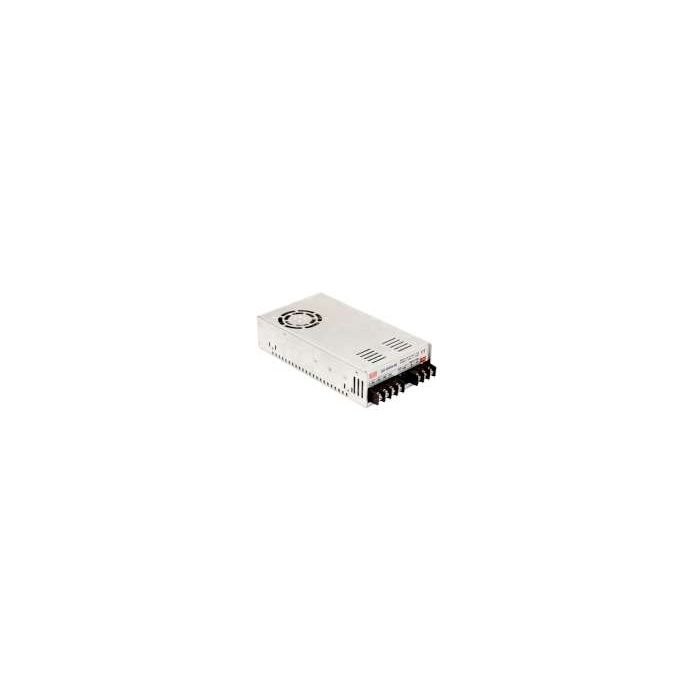

DC-DC CONVERTER 19-72V:12V 40A IN BEHUIZING
€ 209,00
€ 172,73
Artikelnummer
SD500L12
- ArtikelnummerSD500L12
- MerkMEANWELL
- Aantal 3+ € 188,09 € 155,45
DC input active surge current limiting
4:1 DC input range: 19~72VDC)
Protections: Short circuit / Overload / Over voltage / Over temperature
/ Input polarity(by fuse)
2000VAC I/O Isolation
Forced air cooling by built-in DC fan with fan speed control function
Output OK Signal
Built-in remote ON-OFF control
Built-in remote sense function
OUTPUT
DC VOLTAGE: 12V
RATED CURRENT: 40A
CURRENT RANGE: 0 ~ 40A
RATED POWER: 480W
VOLTAGE ADJ. RANGE: 11 ~ 15VDC
INPUT
VOLTAGE RANGE: 19 ~ 72VDC
DC CURRENT: 24.2A/19VDC 24.8A/24VDC 12A/48VDC
DIMENSION : 215x115x50mm
4:1 DC input range: 19~72VDC)
Protections: Short circuit / Overload / Over voltage / Over temperature
/ Input polarity(by fuse)
2000VAC I/O Isolation
Forced air cooling by built-in DC fan with fan speed control function
Output OK Signal
Built-in remote ON-OFF control
Built-in remote sense function
OUTPUT
DC VOLTAGE: 12V
RATED CURRENT: 40A
CURRENT RANGE: 0 ~ 40A
RATED POWER: 480W
VOLTAGE ADJ. RANGE: 11 ~ 15VDC
INPUT
VOLTAGE RANGE: 19 ~ 72VDC
DC CURRENT: 24.2A/19VDC 24.8A/24VDC 12A/48VDC
DIMENSION : 215x115x50mm
