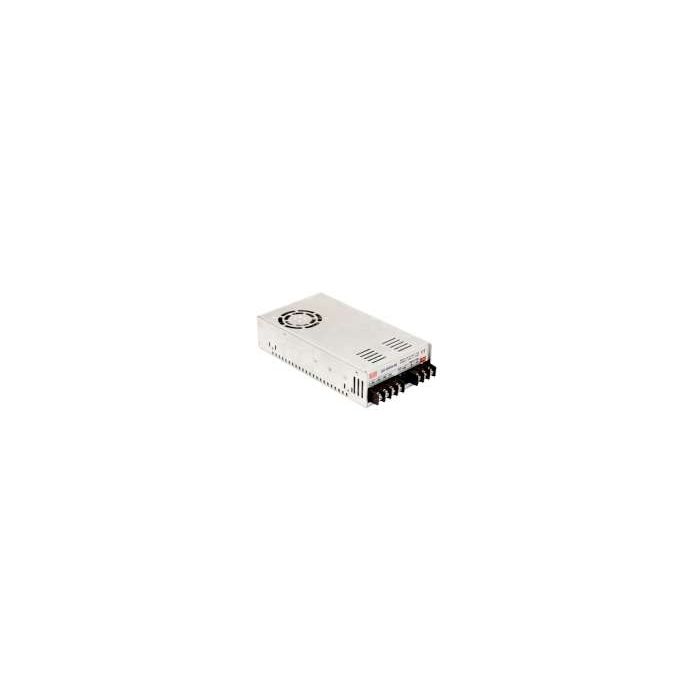

DC-DC CONVERTER 72-144V:24V 21A IN BEHUIZING
€ 209,08
€ 172,79
Artikelnummer
SD500H24
- ArtikelnummerSD500H24
- MerkMEANWELL
- Aantal 3+ € 188,17 € 155,51
DC input active surge current limiting
2:1 DC input range: 72~144VDC)
Protections: Short circuit / Overload / Over voltage / Over temperature
/ Input polarity(by fuse)
2000VAC I/O Isolation
Forced air cooling by built-in DC fan with fan speed control function
Output OK Signal
Built-in remote ON-OFF control
Built-in remote sense function
OUTPUT
DC VOLTAGE: 24V
RATED CURRENT: 21A
CURRENT RANGE: 0 ~ 21A
RATED POWER: 504W
VOLTAGE ADJ. RANGE: 23 ~ 30VDC
INPUT
VOLTAGE RANGE: 72 ~ 144VDC
DC CURRENT: 8A/72VDC 6A/96VDC
DIMENSION : 215x115x50mm
2:1 DC input range: 72~144VDC)
Protections: Short circuit / Overload / Over voltage / Over temperature
/ Input polarity(by fuse)
2000VAC I/O Isolation
Forced air cooling by built-in DC fan with fan speed control function
Output OK Signal
Built-in remote ON-OFF control
Built-in remote sense function
OUTPUT
DC VOLTAGE: 24V
RATED CURRENT: 21A
CURRENT RANGE: 0 ~ 21A
RATED POWER: 504W
VOLTAGE ADJ. RANGE: 23 ~ 30VDC
INPUT
VOLTAGE RANGE: 72 ~ 144VDC
DC CURRENT: 8A/72VDC 6A/96VDC
DIMENSION : 215x115x50mm
