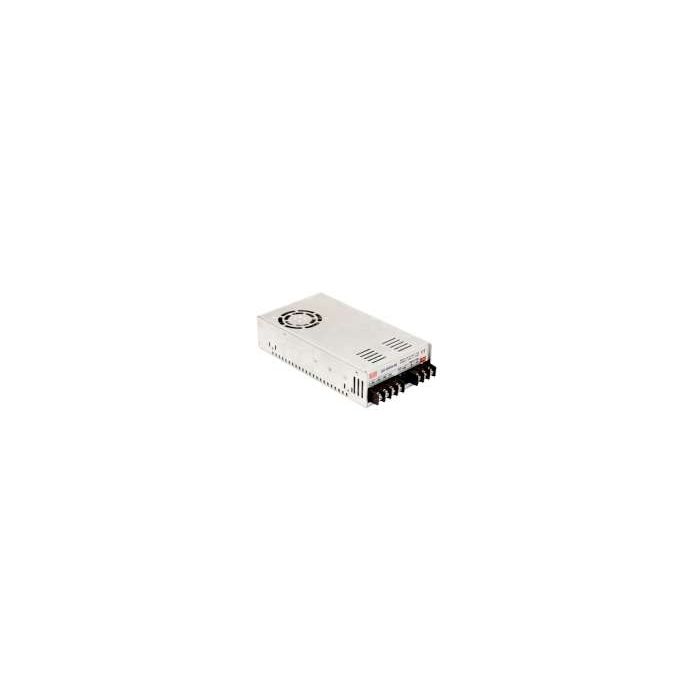

DC-DC CONVERTER 72-144V:12V 40A IN BEHUIZING
€ 209,00
€ 172,73
Artikelnummer
SD500H12
- ArtikelnummerSD500H12
- MerkMEANWELL
- Aantal 3+ € 188,09 € 155,45
DC input active surge current limiting
2:1 DC input range: 72~144VDC)
Protections: Short circuit / Overload / Over voltage / Over temperature
/ Input polarity(by fuse)
2000VAC I/O Isolation
Forced air cooling by built-in DC fan with fan speed control function
Output OK Signal
Built-in remote ON-OFF control
Built-in remote sense function
OUTPUT
DC VOLTAGE: 12V
RATED CURRENT: 40A
CURRENT RANGE: 0 ~ 40A
RATED POWER: 480W
VOLTAGE ADJ. RANGE: 11 ~ 15VDC
INPUT
VOLTAGE RANGE: 72 ~ 144VDC
DC CURRENT: 8A/72VDC 6A/96VDC
DIMENSION : 215x115x50mm
2:1 DC input range: 72~144VDC)
Protections: Short circuit / Overload / Over voltage / Over temperature
/ Input polarity(by fuse)
2000VAC I/O Isolation
Forced air cooling by built-in DC fan with fan speed control function
Output OK Signal
Built-in remote ON-OFF control
Built-in remote sense function
OUTPUT
DC VOLTAGE: 12V
RATED CURRENT: 40A
CURRENT RANGE: 0 ~ 40A
RATED POWER: 480W
VOLTAGE ADJ. RANGE: 11 ~ 15VDC
INPUT
VOLTAGE RANGE: 72 ~ 144VDC
DC CURRENT: 8A/72VDC 6A/96VDC
DIMENSION : 215x115x50mm
