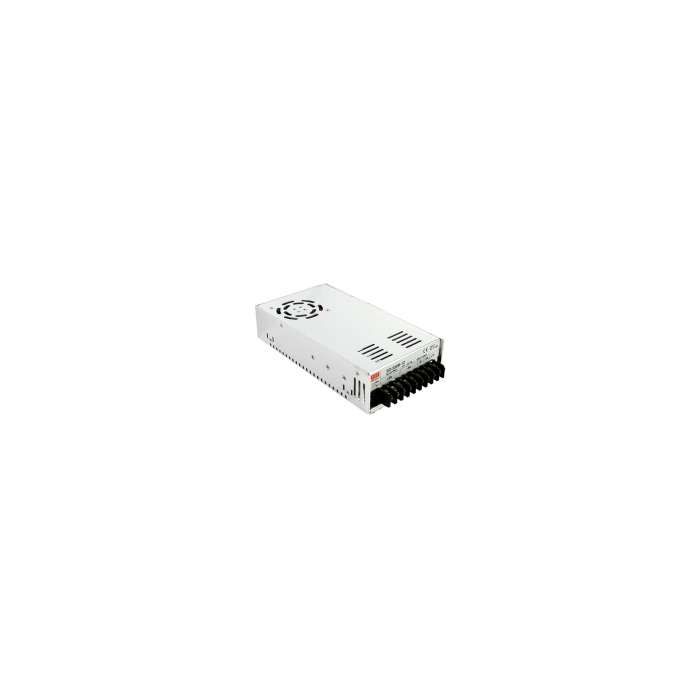

DC-DC CONVERTER 72-144V:12V 29.2A IN BEHUIZING

2:1 wide input range
Protections: Short circuit / Overload / Over voltage / Over temperature
1500VAC I/O isolation
Forced air cooling by built-in DC Fan
100% full load burn-in test
24V and 48V input voltage design refer to LVD

OUTPUT
DC VOLTAGE: 12V
RATED CURRENT: 29.2A
CURRENT RANGE: 0 ~ 29.2A
RATED POWER: 330W
VOLTAGE ADJ. RANGE: 11 ~ 16VDC

INPUT
VOLTAGE RANGE: 72 ~ 144VDC
DC CURRENT: 6A/96V

Dimension: 215x115x50mm
