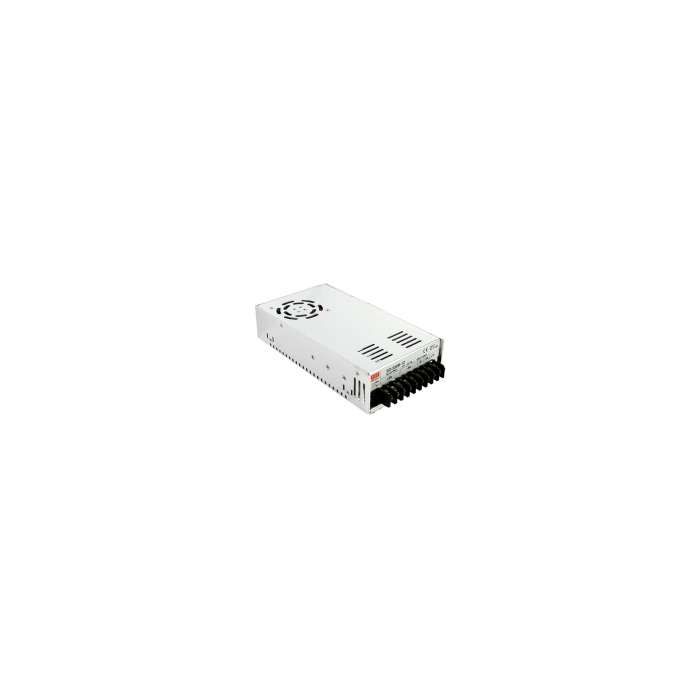

DC-DC CONVERTER 36-72V : 5V 60A IN BEHUIZING

2:1 wide input range
Protections: Short circuit / Overload / Over voltage / Over temperature
1500VAC I/O isolation
Forced air cooling by built-in DC Fan
100% full load burn-in test
24V and 48V input voltage design refer to LVD

OUTPUT
DC VOLTAGE: 5V
RATED CURRENT: 60A
CURRENT RANGE: 0 ~ 60A
RATED POWER: 300W
VOLTAGE ADJ. RANGE: 4.5 ~ 5.5VDC

INPUT
VOLTAGE RANGE: 36 ~ 72VDC
DC CURRENT: 7,6A/48V

Dimension: 215x115x50mm
