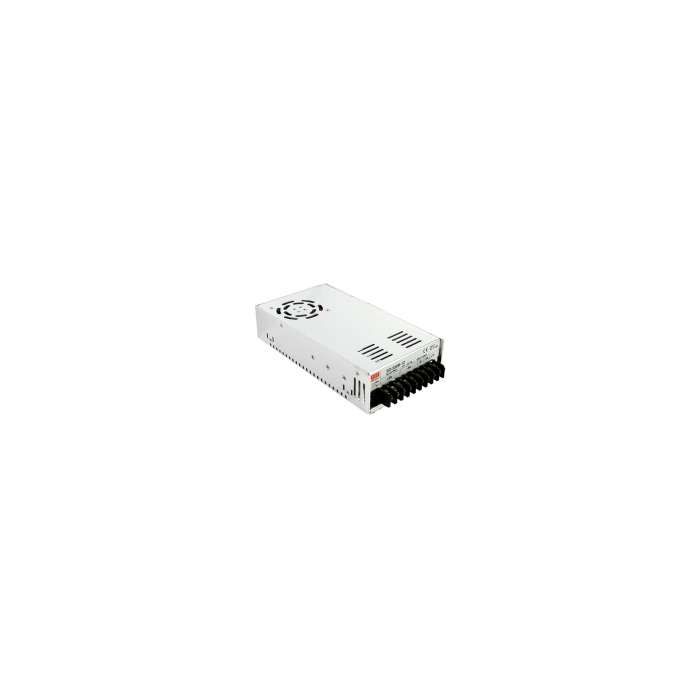

DC-DC CONVERTER 19-36V :48V 7.3A IN BEHUIZING

2:1 wide input range
Protections: Short circuit / Overload / Over voltage / Over temperature
1500VAC I/O isolation
Forced air cooling by built-in DC Fan
100% full load burn-in test
24V and 48V input voltage design refer to LVD

OUTPUT
DC VOLTAGE: 48V
RATED CURRENT: 7.3A
CURRENT RANGE: 0 ~ 7.3A
RATED POWER: 350.4W
VOLTAGE ADJ. RANGE: 43 ~ 53VDC

INPUT
VOLTAGE RANGE: 19 ~ 36VDC
DC CURRENT:17.6A/24V

Dimension: 215x115x50mm
