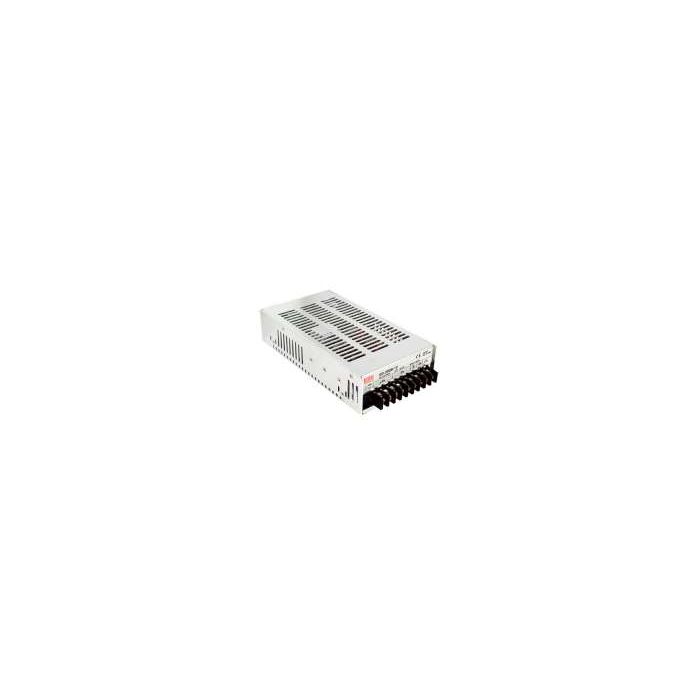

DC-DC CONVERTER 72-144V:24V 8.4A IN BEHUIZING
€ 92,50
€ 76,45
Artikelnummer
SD200D24
- ArtikelnummerSD200D24
- MerkMEANWELL
- Aantal 3+ € 83,25 € 68,80
2:1 wide input range
Protections: Short circuit / Overload / Over voltage / Over temperature
1500VAC I/O isolation
Cooling by free air convection
100% full load burn-in test
OUTPUT
DC VOLTAGE: 24V
RATED CURRENT: 8.4A
CURRENT RANGE: 0 ~ 8.4A
RATED POWER: 201.6W
VOLTAGE ADJ. RANGE: 23 ~ 30VDC
INPUT
VOLTAGE RANGE: 72 ~ 144VDC
DC CURRENT: 3.5A/96V
Dimension: 215x115x50mm
Protections: Short circuit / Overload / Over voltage / Over temperature
1500VAC I/O isolation
Cooling by free air convection
100% full load burn-in test
OUTPUT
DC VOLTAGE: 24V
RATED CURRENT: 8.4A
CURRENT RANGE: 0 ~ 8.4A
RATED POWER: 201.6W
VOLTAGE ADJ. RANGE: 23 ~ 30VDC
INPUT
VOLTAGE RANGE: 72 ~ 144VDC
DC CURRENT: 3.5A/96V
Dimension: 215x115x50mm
