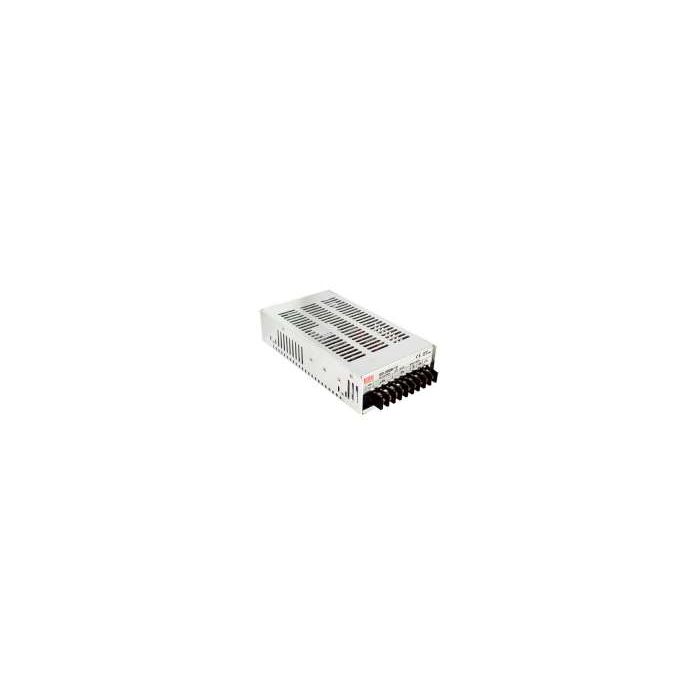

DC-DC CONVERTER 36-72V:24V 8.4A IN BEHUIZING
€ 119,00
€ 98,35
Artikelnummer
SD200C24
- ArtikelnummerSD200C24
- MerkMEANWELL
- Aantal 3+ € 107,10 € 88,51
2:1 wide input range
Protections: Short circuit / Overload / Over voltage / Over temperature
1500VAC I/O isolation
Cooling by free air convection
100% full load burn-in test
OUTPUT
DC VOLTAGE: 24V
RATED CURRENT: 8.4A
CURRENT RANGE: 0 ~ 8.4A
RATED POWER: 201.6W
VOLTAGE ADJ. RANGE: 23 ~ 30VDC
INPUT
VOLTAGE RANGE: 36 ~ 72VDC
DC CURRENT: 6.7A/48V
Protections: Short circuit / Overload / Over voltage / Over temperature
1500VAC I/O isolation
Cooling by free air convection
100% full load burn-in test
OUTPUT
DC VOLTAGE: 24V
RATED CURRENT: 8.4A
CURRENT RANGE: 0 ~ 8.4A
RATED POWER: 201.6W
VOLTAGE ADJ. RANGE: 23 ~ 30VDC
INPUT
VOLTAGE RANGE: 36 ~ 72VDC
DC CURRENT: 6.7A/48V
