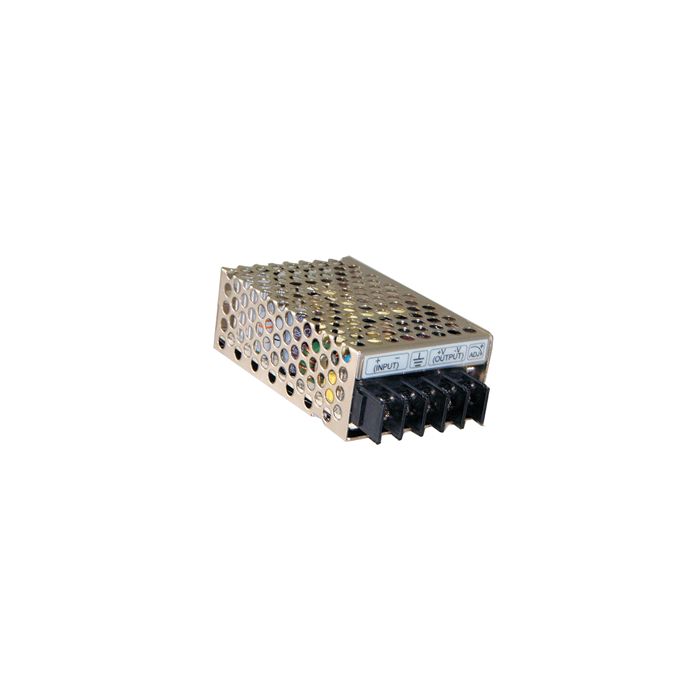

DC-DC CONVERTER 36-72V:12V 1.25A IN BEHUIZING
€ 20,95
€ 17,31
Artikelnummer
SD15C12
- ArtikelnummerSD15C12
- MerkMEANWELL
- Aantal 3+ € 18,84 € 15,57
15W Single Output DC-DC Converter
2:1 wide input range
Protections:Short circuit/Over load /voltage
Built-in EMI filter, low ripple noise
100% full load burn-in test
Low cost
High reliability
\\OUTPUT
DC VOLTAGE: 12V
RATED CURRENT: 1,25A
CURRENT RANGE: 0 ~ 1.25A
RATED POWER: 15W
RIPPLE & NOISE (max.) Note.2: 120mVp-p
VOLTAGE ADJ. RANGE: 10.8 ~ 13.2VDC
VOLTAGE TOLERANCE Note.3: +/- 1.0%
LINE REGULATION: +/- 0.3%
LOAD REGULATION: +/- 0.3%
SETUP, RISE, HOLD UP TIME: 2.5s, 50ms, --12VDC/24VDC/48VDC at full load
INPUT
VOLTAGE RANGE: 36 ~ 72VDC
INPUT EFFICIENCY (Typ.): 79%
DC CURRENT: 0.45A/48VDC
DIMENSION: 78x51x28mm (LxWxH)
2:1 wide input range
Protections:Short circuit/Over load /voltage
Built-in EMI filter, low ripple noise
100% full load burn-in test
Low cost
High reliability
\\OUTPUT
DC VOLTAGE: 12V
RATED CURRENT: 1,25A
CURRENT RANGE: 0 ~ 1.25A
RATED POWER: 15W
RIPPLE & NOISE (max.) Note.2: 120mVp-p
VOLTAGE ADJ. RANGE: 10.8 ~ 13.2VDC
VOLTAGE TOLERANCE Note.3: +/- 1.0%
LINE REGULATION: +/- 0.3%
LOAD REGULATION: +/- 0.3%
SETUP, RISE, HOLD UP TIME: 2.5s, 50ms, --12VDC/24VDC/48VDC at full load
INPUT
VOLTAGE RANGE: 36 ~ 72VDC
INPUT EFFICIENCY (Typ.): 79%
DC CURRENT: 0.45A/48VDC
DIMENSION: 78x51x28mm (LxWxH)
