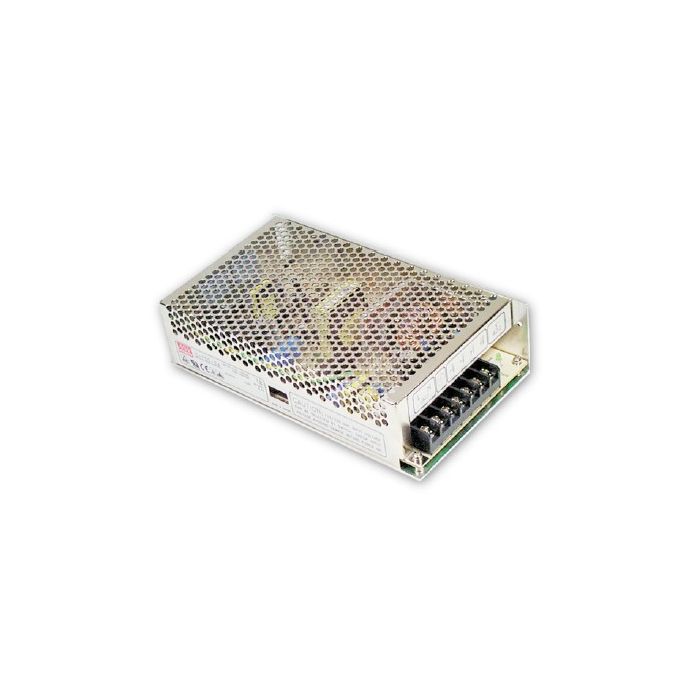

DC-DC CONVERTER 36-72V:12V 12.5A IN BEHUIZING
€ 69,95
€ 57,81
Artikelnummer
SD150C12
- ArtikelnummerSD150C12
- MerkMEANWELL
- Aantal 3+ € 62,94 € 52,02
| Features |
| • Enclosed case, screw terminals • Overload protection, current limiting, hiccup after 5s, re-power-on • Wide input voltage range 2:1 • DC decoupling of input and output • Input/output insulation 1500V • Regulated output voltage • Short-circuit proof |
 |
| Technical Specifications |
|
|
| Input Voltage: | See Table |
| Over Load Protection: | 105...135% |
| Withstand Voltage | |
| I/P-O/P: | 1500V AC |
| I/P-FG: | 1500V AC |
| O/P-FG: | 500V AC |
| Operating Temperature: | -10...+60°C |
| Weight: | 860g |
| I/P = Input, O/P = Output, FG = Frame Ground |
|
|
|
| Part Nr. | UE |
UA |
IA |
Uadj |
DUA |
URN |
h |
| [V] | [V] | [A] | [V] | [%] | [mVp-p] | [%] | |
| SD-150B-12 | 19...36 | 12 | 0...12,5 | 11...16 | 1 | 120 | 75 |
| SD-150B-24 | 19...36 | 24 | 0...6,3 | 23...30 | 1 | 150 | 77 |
| SD-150C-12 | 36...72 | 12 | 0...12,5 | 11...16 | 1 | 120 | 77 |
| SD-150C-24 | 36...72 | 24 | 0...6,3 | 23...30 | 1 | 150 | 80 |
| SD-150D-12 | 72...144 | 12 | 0...12,5 | 11...16 | 1 | 120 | 79 |
| SD-150D-24 | 72...144 | 24 | 0...6,3 | 23...30 | 1 | 150 | 82 |
| UE = Input Voltage, UA = Output Voltage, IA = Output Current Range, Uadj = Output Voltage Adjustment, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Efficiency | |||||||
