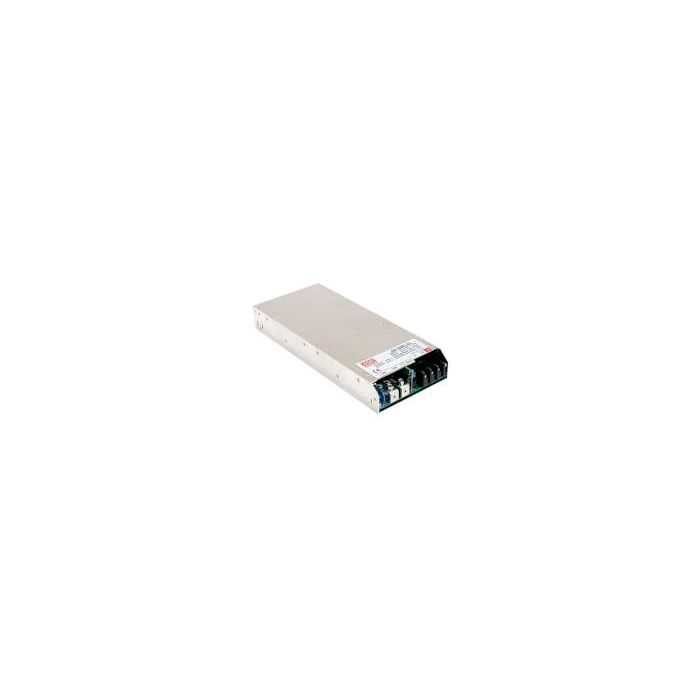

DC-DC CONVERTER 72-144V:12V 60A IN BEHUIZING
€ 389,00
€ 321,49
Artikelnummer
SD1000H12
- ArtikelnummerSD1000H12
- MerkMEANWELL
- Aantal 3+ € 350,10 € 289,34
DC VOLTAGE: 12V
RATED CURRENT: 60A
CURRENT RANGE: 0 ~ 60A
RATED POWER: 720W
VOLTAGE ADJ. RANGE: 11 ~ 15VDC
Features
2000Vac I/O Isolation
Short circuit, over load, over voltage, over temperature protections
Forced air cooling by built-in DC fan with fan speed control
High power density 10.7W/inch³
1U low profile, 41mm
Output OK signal
Built-in remote ON-OFF control
Built-in remote sense function
Applications
Electrical engineering
Automotive
Battery back-up applications
Description
SD-1000 Series enclosed 1U DC-DC converter, for the growing demand of high wattage dc/dc applications. Features 4:1~2:1 wide DC input range and 2000VAC input/output isolation, with 72~144V input levels. Other standard features include 12V/0.25A auxiliary output, output OK signal, remote on/off control and remote sense functions as well as short circuit, over load, over voltage and over temperature protections.
Specification
Input Voltage 72 ~ 144Vdc
Input Current 11.6A/96Vdc
Inrush Current 100A/96Vdc
Set Up, Rise Time 500ms, 50ms at full load
Ripple & Noise 150mV
Output Voltage Tolerance ±1.0%
Line Regulation ±0.5% maximum
Load Regulation ±0.5% maximum
Over Load Protection 105%~125% rated output power
Constant current limiting, unit will shut down o/p voltage about 5sec. Re-power on to recover
Over Voltage Protection Shut down o/p voltage, re-power on to recover
Over Temperature Protection 80°C ±5°C (TSW2) Detect on heatsink of O/P diode;
75°C ±5°C (TSW1) Detect on heatsink of power transistor
Shut down o/p voltage, recovers automatically after temperature goes down
Remote On/Off Control Refer to datasheet
Output OK Signal Open collector signal low when PSU turns on, Max sink current: 10mA
Working Temperature -20°C to +60°C (refer to output derating curve), -40 start up possible
Working Humidity 20 ~ 90% RH non-condensing
Storage Temperature, Humidity -40°C to +85°C, 10 ~ 95% RH
Temperature Coefficient ±0.02%/°C (0 ~ 50°C)
Vibration 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Withstand Voltage I/P-O/P: 2KV I/P-FG: 1.5KV O/P-FG: 0.5KVAC
Isolation Resistance I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
Safety Standards IEC60950-1 CB Approved by TUV
EMC Standards Compliance to EN55022 (CISPR22); EN61000-3-2,-3; EN61000-4-2,3,4,6,8;
ENV50204 Light industry level, criteria A
MTBF 32K hrs min. MIL-HDBK-217F (25°C)
RATED CURRENT: 60A
CURRENT RANGE: 0 ~ 60A
RATED POWER: 720W
VOLTAGE ADJ. RANGE: 11 ~ 15VDC
Features
2000Vac I/O Isolation
Short circuit, over load, over voltage, over temperature protections
Forced air cooling by built-in DC fan with fan speed control
High power density 10.7W/inch³
1U low profile, 41mm
Output OK signal
Built-in remote ON-OFF control
Built-in remote sense function
Applications
Electrical engineering
Automotive
Battery back-up applications
Description
SD-1000 Series enclosed 1U DC-DC converter, for the growing demand of high wattage dc/dc applications. Features 4:1~2:1 wide DC input range and 2000VAC input/output isolation, with 72~144V input levels. Other standard features include 12V/0.25A auxiliary output, output OK signal, remote on/off control and remote sense functions as well as short circuit, over load, over voltage and over temperature protections.
Specification
Input Voltage 72 ~ 144Vdc
Input Current 11.6A/96Vdc
Inrush Current 100A/96Vdc
Set Up, Rise Time 500ms, 50ms at full load
Ripple & Noise 150mV
Output Voltage Tolerance ±1.0%
Line Regulation ±0.5% maximum
Load Regulation ±0.5% maximum
Over Load Protection 105%~125% rated output power
Constant current limiting, unit will shut down o/p voltage about 5sec. Re-power on to recover
Over Voltage Protection Shut down o/p voltage, re-power on to recover
Over Temperature Protection 80°C ±5°C (TSW2) Detect on heatsink of O/P diode;
75°C ±5°C (TSW1) Detect on heatsink of power transistor
Shut down o/p voltage, recovers automatically after temperature goes down
Remote On/Off Control Refer to datasheet
Output OK Signal Open collector signal low when PSU turns on, Max sink current: 10mA
Working Temperature -20°C to +60°C (refer to output derating curve), -40 start up possible
Working Humidity 20 ~ 90% RH non-condensing
Storage Temperature, Humidity -40°C to +85°C, 10 ~ 95% RH
Temperature Coefficient ±0.02%/°C (0 ~ 50°C)
Vibration 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Withstand Voltage I/P-O/P: 2KV I/P-FG: 1.5KV O/P-FG: 0.5KVAC
Isolation Resistance I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
Safety Standards IEC60950-1 CB Approved by TUV
EMC Standards Compliance to EN55022 (CISPR22); EN61000-3-2,-3; EN61000-4-2,3,4,6,8;
ENV50204 Light industry level, criteria A
MTBF 32K hrs min. MIL-HDBK-217F (25°C)
