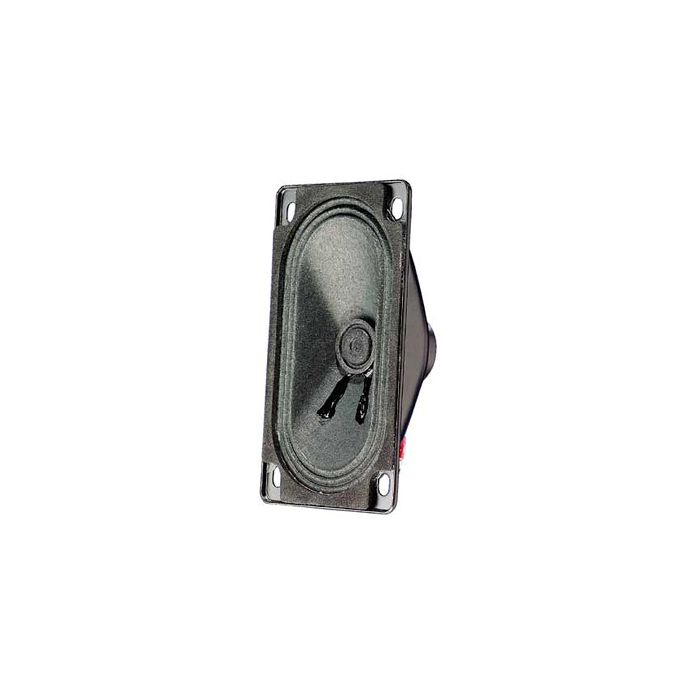

SPEAKER BREEDBAND 4 OHM 3/4W 150-17000HZ 82DB 50.5X90.5MMAFGESCHERMD
€ 10,74
€ 8,88
Artikelnummer
SC5.9ND/4
- ArtikelnummerSC5.9ND/4
- MerkVISATON
- Aantal 3+ € 10,20 € 8,43
Magnetically shielded oval fullrange driver with good efficiency and balanced frequency response with a clear highrange reproduction. Extremely small size due to a neodymium magnet system. Applicable as built-in speaker in TV\'s and PC\'s with very small mounting space.
Typical applications:
- Video monitoring screens
- TVs
- Control speaker for electronic devices
Attributes :
- Moisturised cone
- Metal basket
- Magnetically shielded
Rated power 3 W
Maximum power 4 W
Nominal impedance Z 4 Ohm
Frequency response 15017000 Hz
Mean sound pressure level 82 dB (1 W/1 m)
Opening angle (-6 dB) 180°/4000 Hz hor.
131°/4000 Hz ver.
Excursion limit +/−1 mm
Resonance frequency fs 243 Hz
Magnetic induction 0,75 T
Magnetic flux 100 µWb
Height of front pole-plate 3 mm
Voice coil diameter 14 mm
Height of winding 4 mm
Cutout diameter 43 x 82 mm (oval)
Net weight 0,06 kg
D.C. resistance Rdc 3,8 Ohm
Mechanical Q factor Qms 9,23
Electrical Q factor Qes 8,03
Total Q factor Qts 4,3
Equivalent volume Vas 0,3 l
Effective piston area Sd 26,5 cm²
Dynamically moved mass Mms 1,3 g
Force factor Bxl 1,0 Tm
Inductance of the voice coil L 0,2 mH
Temperature range −25 ... 70 °C
