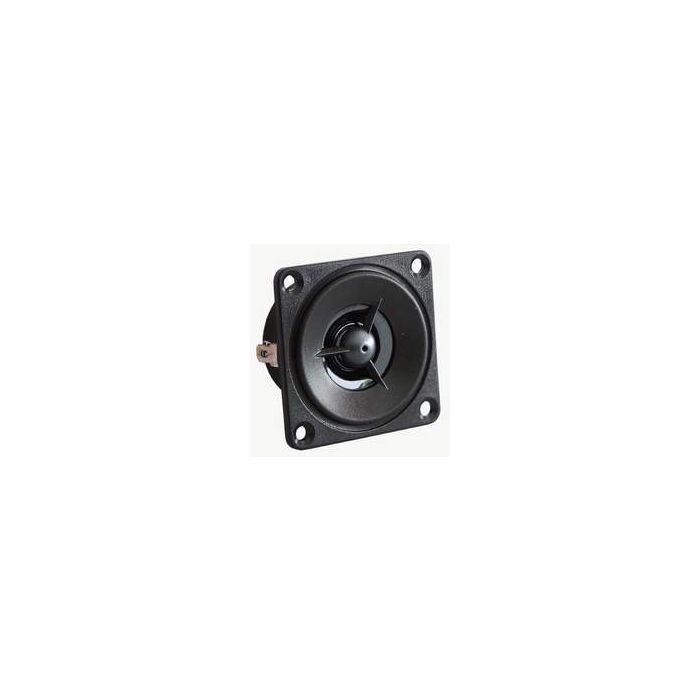

SPEAKER HOOG 8 OHM 60/100W 1500-22000HZ 90DB 51.5X51.5MM AFGESCHERMD
€ 18,95
€ 15,66
Artikelnummer
SC5/8
- ArtikelnummerSC5/8
- MerkVISATON
- Aantal 2+ € 17,99 € 14,87
Nominal power handling with high pass 60 W (12 dB/Okt.; 6000 Hz)
Peak power handling with high pass 100 W (12 dB/Okt.; 6000 Hz)
Nominal impedance Z 8 Ohm
Frequency response 150022000 Hz
Mean sound pressure level 90 dB (1 W/1 m)
Opening angle (-6 dB) 107°/8000 Hz
Resonance frequency fs 2000 Hz
Magnetic induction 0,7 T
Magnetic flux 33 µWb
Height of front pole-plate 2 mm
Voice coil diameter 13 mm
Height of winding 2 mm
Cutout diameter 48 mm
Net weight 0,098 kg
Connections 5,2 x 0,5 mm (+)
2,8 x 0,5 mm (−)
Peak power handling with high pass 100 W (12 dB/Okt.; 6000 Hz)
Nominal impedance Z 8 Ohm
Frequency response 150022000 Hz
Mean sound pressure level 90 dB (1 W/1 m)
Opening angle (-6 dB) 107°/8000 Hz
Resonance frequency fs 2000 Hz
Magnetic induction 0,7 T
Magnetic flux 33 µWb
Height of front pole-plate 2 mm
Voice coil diameter 13 mm
Height of winding 2 mm
Cutout diameter 48 mm
Net weight 0,098 kg
Connections 5,2 x 0,5 mm (+)
2,8 x 0,5 mm (−)
