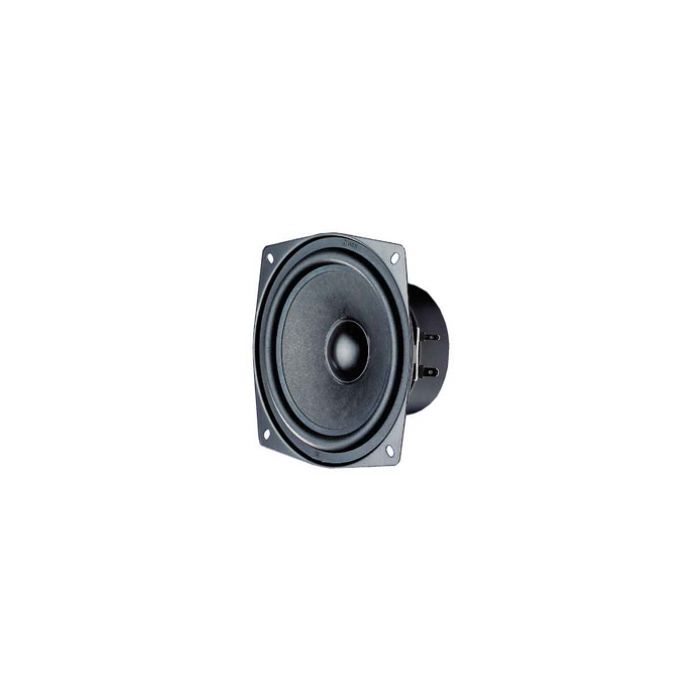

SPEAKER BREEDBAND 8 OHM 40/60W 50-12000HZ 90DB 131X131MM

Nominal power handling 40 Watt
Peak power handling 60 Watt
Nominal impedance 8 Ohm
Frequency response fc - 12000 Hz
Mean sound pressure (nominal) 90 dB (1 W/1 m)
Maximum cone displacement 15 mm
Resonance frequency 75 Hz
Magnetic induction 1 Tesla
Magnetic flux 250 µ Weber
Height of front pole-plate 4 mm
Voice coil diameter 2 cm
Height of winding 0,55 cm
Cutout diameter 11,3 cm
Net weight 0,62 kg
D.C. resistance Rdc 7,0 Ohm
Mechanical Q factor Qms 3,73
Electrical Q factor Qes 0,90
Total Q factor Qts 0,72
Equivalent volume Vas 8 l
Effective piston area Sd 79 cm2
Dynamically moved mass mmd 4,8 g
Force factor Bxl 4,2 T · m
Inductance of the voice coil 0,66 mH
