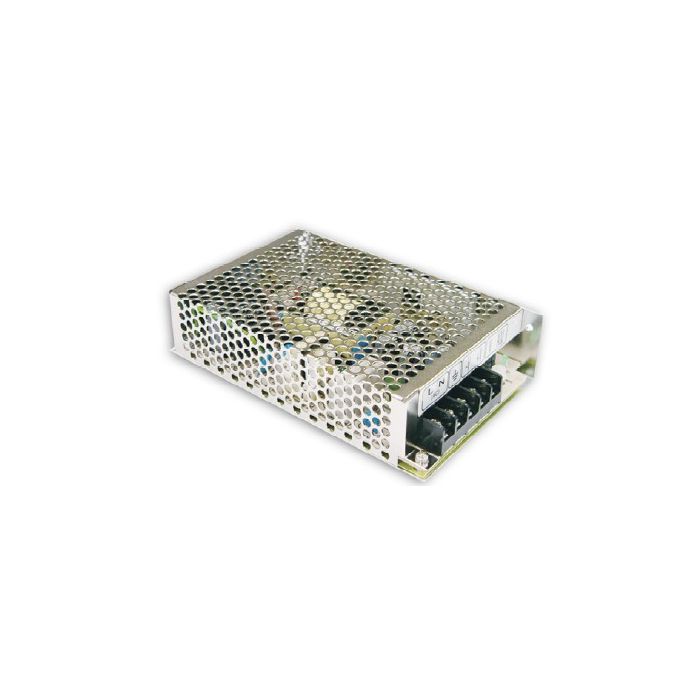

GESCHAKELDE VOEDING SINGLE OUTPUT 60W 12V/5.0A

MODEL S-60-12

OUTPUT:
DC VOLTAGE 12.0V
RATED CURRENT 5A
CURRENT RANGE 0 ~ 5A
RATED POWER 60W
RIPPLE & NOISE (max.) 120mVp-p
OUTPUT VOLTAGE ADJ. RANGE 10.8-13.2V
VOLTAGE TOLERANCE +/-1.0%
LINE REGULATION +/-0.5%
LOAD REGULATION +/-0.5%
SETUP, RISE TIME 300ms, 50ms/230VAC
HOLD TIME (Typ.) 80ms/230VAC at full load

INPUT:
VOLTAGE RANGE 88 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY(Typ.) 76%
AC CURRENT (Typ.) 1A/230VAC
INRUSH CURRENT (Typ.) COLD START 40A/230VAC
LEAKAGE CURRENT <3.5mA / 240VAC

PROTECTION:
OVER LOAD 110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is
OVER VOLTAGE 13.8 ~ 16.2V Protection type : Hiccup mode, recovers automatically after fault condition is removed

Dimensions 99*97*36mm (L*W*H)
