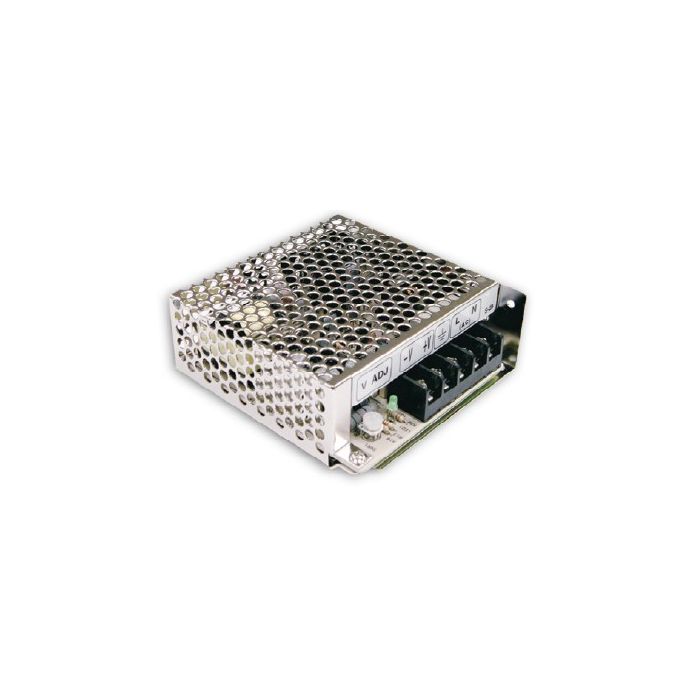

GESCHAKELDE VOEDING SINGLE OUTPUT 25W 15V/1.7A

MODEL S-25-15

OUTPUT:
DC VOLTAGE 15.0V
RATED CURRENT 1.7A
CURRENT RANGE 0 ~ 1.7A
RATED POWER 25.5W
RIPPLE & NOISE (max.) 10Vp-p
OUTPUT VOLTAGE ADJ. RANGE 13.5-16.5V
VOLTAGE TOLERANCE +/-1.0%
LINE REGULATION +/-0.5%
LOAD REGULATION +/-0.5%
SETUP, RISE TIME 300ms, 50ms/230VAC
HOLD TIME (Typ.) 90ms/230VAC at full load

INPUT:
VOLTAGE RANGE 88 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY(Typ.) 77%
AC CURRENT (Typ.) 0.35A/230VAC
INRUSH CURRENT (Typ.) COLD START 25A/230VAC
LEAKAGE CURRENT <0.75mA / 240VAC

PROTECTION:
OVER LOAD 110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is
OVER VOLTAGE 17.25 ~ 20.25V Protection type : Hiccup mode, recovers automatically after fault condition is removed

Dimensions 99*97*36mm (L*W*H)
