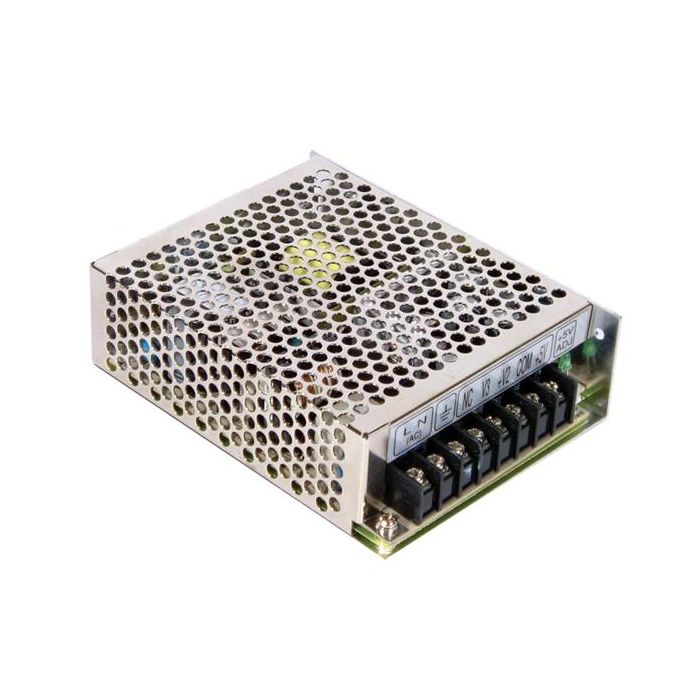

GESCHAKELDE VOEDING 64W TRIPLE OUTPUT +5/+12/-12V 5.0/2.8/0.5A

MEANWELL
Artikelnummer: RT65B
Uw prijs:
€ 22,52 Excl. BTW:
€ 27,25 Incl. BTW:
- +

Extra informatie

print
Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
All using 105C long life electrolytic capacitors
Withstand 300VAC surge input for 5 second
High operating temperature up to 70
Withstand 5G vibration test
High efficiency, long life and high reliability

OUTPUT:
DC VOLTAGE +5V - +12V - -12V
RATED CURRENT 5A - 2.8A - 0.5A
CURRENT RANGE 0.5 ~ 8A - 0.2 ~ 3.5A - 0 ~ 1A
RATED POWER 64.6W
RIPPLE & NOISE (max.) 80mVp-p - 120mVp-p - 80mVp-p
OUTPUT VOLTAGE ADJ. RANGE CH1 4.75 ~ 5.5V

INPUT:
VOLTAGE RANGE 90 ~ 264VAC 125 ~ 373VDC
FREQUENCY RANGE 47 ~ 63Hz


PROTECTION:
OVER LOAD 110 ~ 150% rated output power
Protection type :
Hiccup mode, recovers automatically after fault condition is

OVER VOLTAGE 5.75 ~ 6.75V
Protection type :
Hiccup mode, recovers automatically after fault condition is removed

Dimensions 129*98*38mm (L*W*H)
