KAST 19'' ZWART 480X360X44MM 1U
€ 81,68
€ 67,50
Artikelnummer
RT11/1U3
- ArtikelnummerRT11/1U3
- MerkRETEX
- Aantal 3+ € 77,59 € 64,12

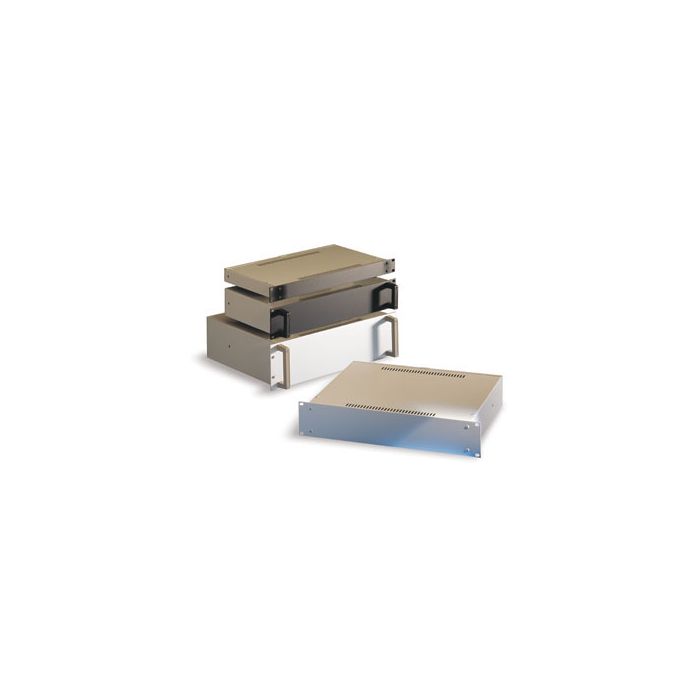

The range Serie 180 is intended for electronics and telecommunication oriented or electrical equipment which can be installed in 19 racks built to DIN 41 494 and IEC 60297-2. Its easy assembly and optimum accessibility allows a quick mounting of internal components.
Main characteristics: Height: 1, 2 and 3 U/HE. Depth: 260 and 360 mm. Mounting: with ten M4 screws (eight for 1 U/HE). Front and rear internal supports for the mounting of trays or circuits.
Supply: mounted, optional handles.
Finish: Front panel: made of 3 mm thick aluminumsheet, silver or black anodized. Frame: 1 mm thick steel sheet, epoxy painted similar to RAL 9002.
Main characteristics: Height: 1, 2 and 3 U/HE. Depth: 260 and 360 mm. Mounting: with ten M4 screws (eight for 1 U/HE). Front and rear internal supports for the mounting of trays or circuits.
Supply: mounted, optional handles.
Finish: Front panel: made of 3 mm thick aluminumsheet, silver or black anodized. Frame: 1 mm thick steel sheet, epoxy painted similar to RAL 9002.
