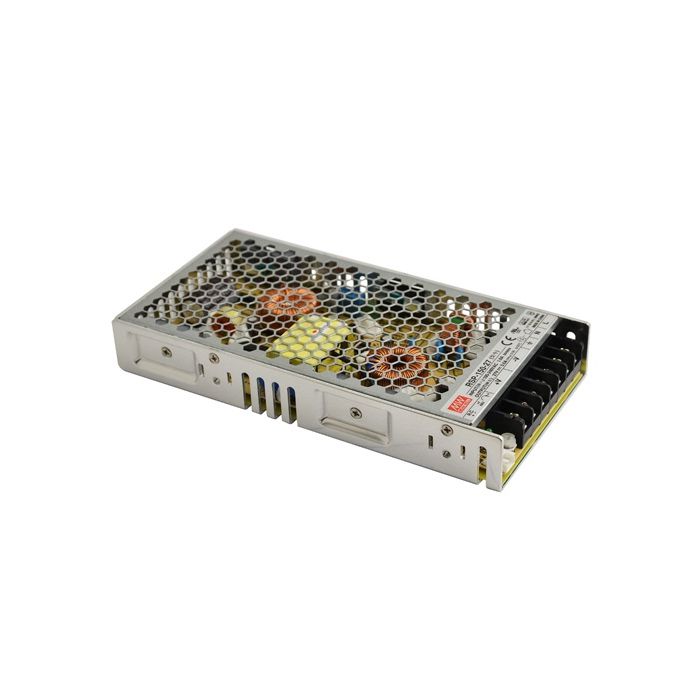

GESCHAKELDE VOEDING SINGLE OUTPUT 150W 27V/5,6A

Universal AC input / Full range
Built in active PFC function
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Built-in constant current limiting circuit
1U low profile 30mm
Remote ON-OFF control
LED indicator for power on
100% full load burn-in test


OUTPUT:
DC VOLTAGE 24V
RATED CURRENT 5.6A
CURRENT RANGE 0 ~ 5.6A
RATED POWER 150W
RIPPLE & NOISE (max.) 150mVp-p
OUTPUT VOLTAGE ADJ. RANGE 25.7 ~ 29.7V
VOLTAGE TOLERANCE +/1.0%

INPUT:
VOLTAGE RANGE 88 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz

199*119*30mm (L*W*H)
