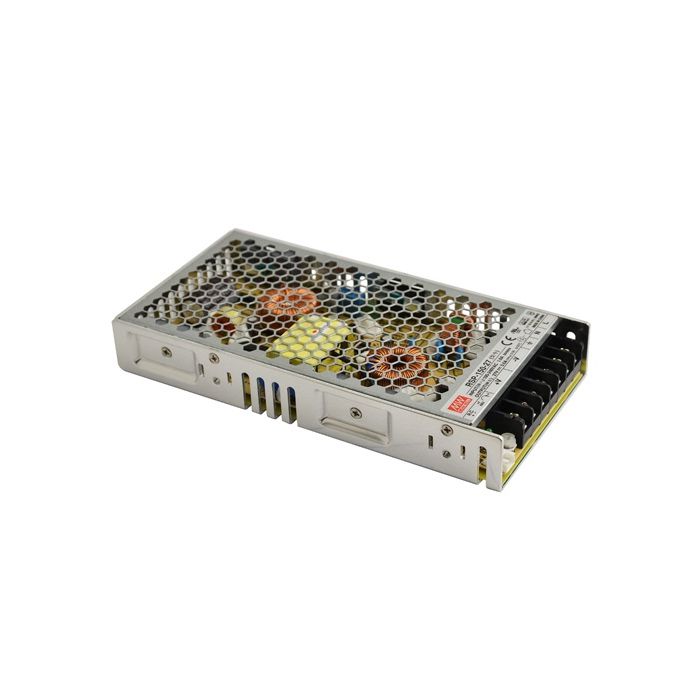

GESCHAKELDE VOEDING SINGLE OUTPUT 150W 24V/6,3A

Universal AC input / Full range
Built in active PFC function
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Built-in constant current limiting circuit
1U low profile 30mm
Remote ON-OFF control
LED indicator for power on
100% full load burn-in test


OUTPUT:
DC VOLTAGE 24V
RATED CURRENT 6.3A
CURRENT RANGE 0 ~ 6.3A
RATED POWER 151.2W
RIPPLE & NOISE (max.) 150mVp-p
OUTPUT VOLTAGE ADJ. RANGE 22.8 ~ 26.4V
VOLTAGE TOLERANCE +/1.0%

INPUT:
VOLTAGE RANGE 88 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz

210*100*50mm (L*W*H)
