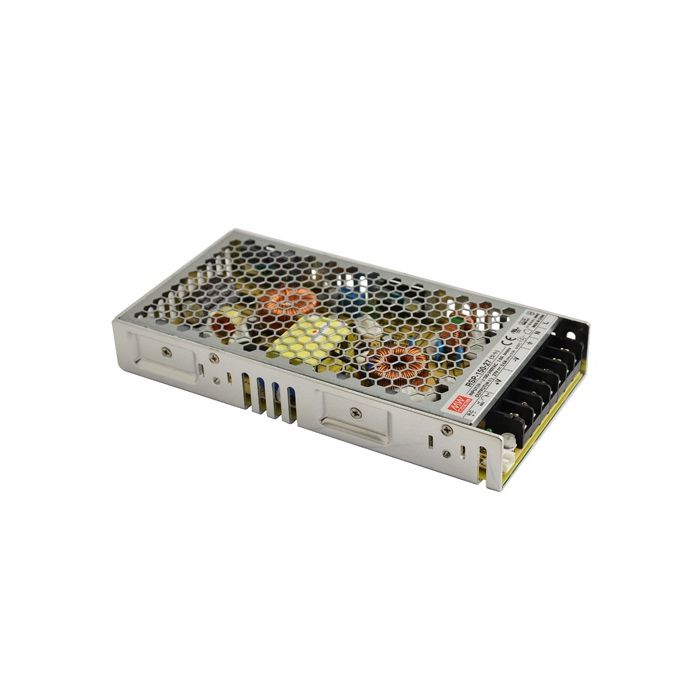

GESCHAKELDE VOEDING SINGLE OUTPUT 150W 12V/12,6A
€ 52,50
€ 43,39
Artikelnummer
RSP15012
- ArtikelnummerRSP15012
- MerkMEANWELL
- Aantal 3+ € 49,88 € 41,22
Universal AC input / Full range
Built in active PFC function
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Built-in constant current limiting circuit
1U low profile 30mm
Remote ON-OFF control
LED indicator for power on
100% full load burn-in test
OUTPUT:
DC VOLTAGE 12V
RATED CURRENT 12.5A
CURRENT RANGE 0 ~ 12.5A
RATED POWER 150W
RIPPLE & NOISE (max.) 100mVp-p
OUTPUT VOLTAGE ADJ. RANGE 11.4 ~ 13.2V
VOLTAGE TOLERANCE +/2.0%
INPUT:
VOLTAGE RANGE 88 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
199*119*30mm (L*W*H)
Built in active PFC function
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Built-in constant current limiting circuit
1U low profile 30mm
Remote ON-OFF control
LED indicator for power on
100% full load burn-in test
OUTPUT:
DC VOLTAGE 12V
RATED CURRENT 12.5A
CURRENT RANGE 0 ~ 12.5A
RATED POWER 150W
RIPPLE & NOISE (max.) 100mVp-p
OUTPUT VOLTAGE ADJ. RANGE 11.4 ~ 13.2V
VOLTAGE TOLERANCE +/2.0%
INPUT:
VOLTAGE RANGE 88 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
199*119*30mm (L*W*H)
