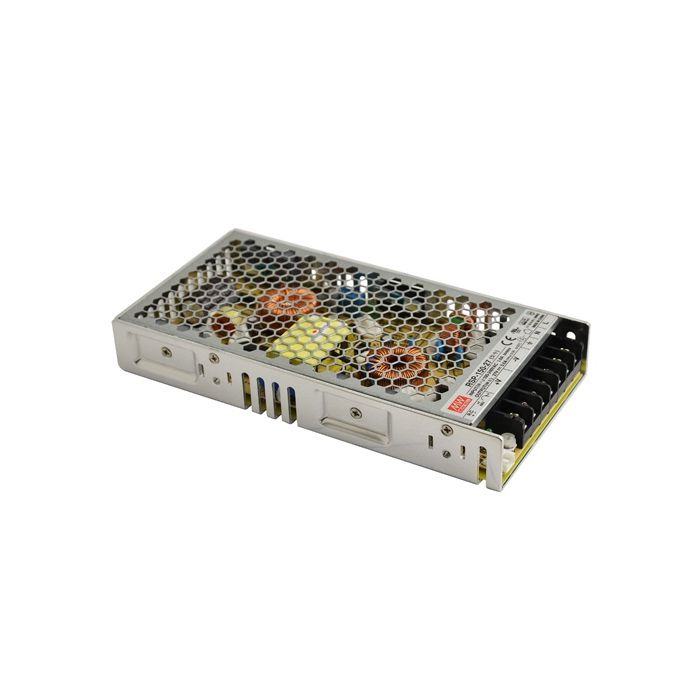

GESCHAKELDE VOEDING SINGLE OUTPUT 150W 7.5V/20A

Universal AC input / Full range
Built in active PFC function
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Built-in constant current limiting circuit
1U low profile 30mm
Remote ON-OFF control
LED indicator for power on
100% full load burn-in test


OUTPUT:
DC VOLTAGE 7.5V
RATED CURRENT 20A
CURRENT RANGE 0 ~ 20A
RATED POWER 150W
RIPPLE & NOISE (max.) 100mVp-p
OUTPUT VOLTAGE ADJ. RANGE 7.13 ~ 8.25V
VOLTAGE TOLERANCE +/2.0%

INPUT:
VOLTAGE RANGE 88 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz

199*119*30mm (L*W*H)
