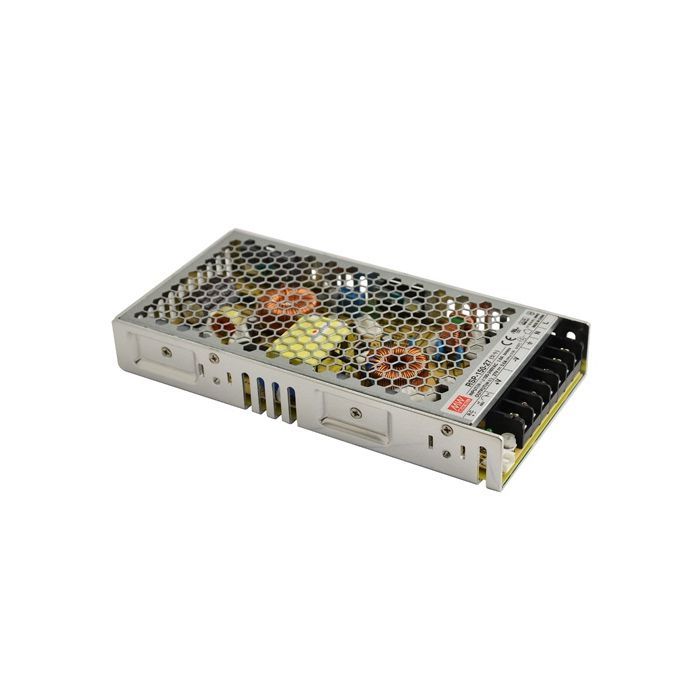

GESCHAKELDE VOEDING SINGLE OUTPUT 99W 3.3V/30A
€ 52,50
€ 43,39
Artikelnummer
RSP15003
- ArtikelnummerRSP15003
- MerkMEANWELL
- Aantal 3+ € 49,88 € 41,22
Universal AC input / Full range
Built in active PFC function
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Built-in constant current limiting circuit
1U low profile 30mm
Remote ON-OFF control
LED indicator for power on
100% full load burn-in test
OUTPUT:
DC VOLTAGE 3.3V
RATED CURRENT 30A
CURRENT RANGE 0 ~ 30A
RATED POWER 99W
RIPPLE & NOISE (max.) 100mVp-p
OUTPUT VOLTAGE ADJ. RANGE 3.14 ~ 3.63V
VOLTAGE TOLERANCE +/-2.0%
INPUT:
VOLTAGE RANGE 88 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
199*119*30mm (L*W*H)
Built in active PFC function
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Built-in constant current limiting circuit
1U low profile 30mm
Remote ON-OFF control
LED indicator for power on
100% full load burn-in test
OUTPUT:
DC VOLTAGE 3.3V
RATED CURRENT 30A
CURRENT RANGE 0 ~ 30A
RATED POWER 99W
RIPPLE & NOISE (max.) 100mVp-p
OUTPUT VOLTAGE ADJ. RANGE 3.14 ~ 3.63V
VOLTAGE TOLERANCE +/-2.0%
INPUT:
VOLTAGE RANGE 88 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
199*119*30mm (L*W*H)
