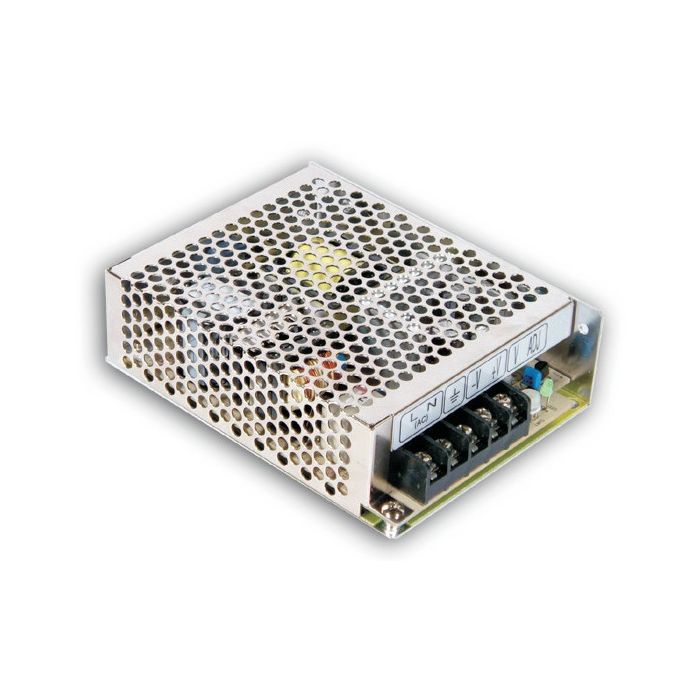

GESCHAKELDE VOEDING SINGLE OUTPUT 60W 5.0V/12A

MODEL RS-75-5

OUTPUT:
DC VOLTAGE 5V
RATED CURRENT 12A
CURRENT RANGE 0 ~ 12A
RATED POWER 60W
RIPPLE & NOISE (max.) 80mVp-p
OUTPUT VOLTAGE ADJ. RANGE 4.75 ~ 5.5V
VOLTAGE TOLERANCE +/-2.0%
LINE REGULATION +/-0.5%
LOAD REGULATION +/-1.0%
SETUP, RISE TIME 500ms, 30ms/230VAC
HOLD TIME (Typ.) 60ms/230VAC at full load

INPUT:
VOLTAGE RANGE 88 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY(Typ.) 76%
AC CURRENT (Typ.) 1.2A/230VAC
INRUSH CURRENT (Typ.) COLD START 40A/230VAC
LEAKAGE CURRENT <2mA / 240VAC

PROTECTION:
OVER LOAD 110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is
OVER VOLTAGE 5.75 ~ 6.75V Protection type : Hiccup mode, recovers automatically after fault condition is removed

Dimensions 129*97*38mm (L*W*H)
