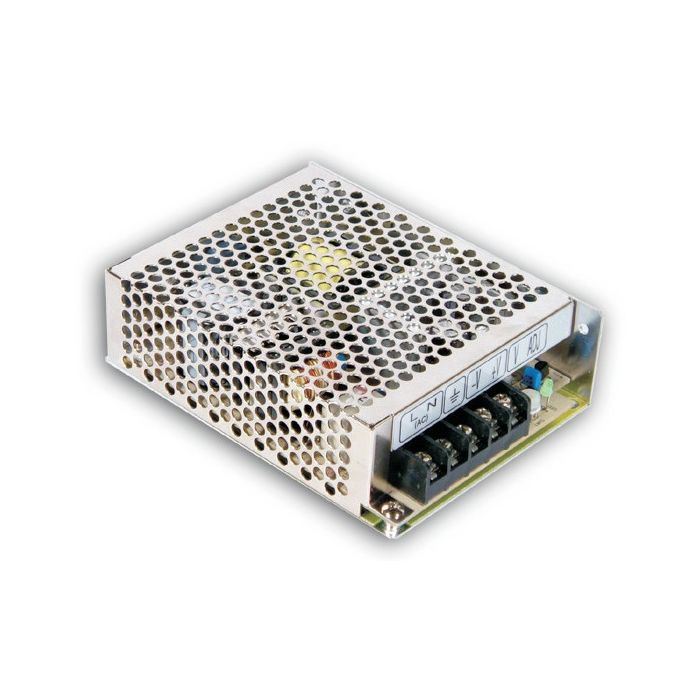

GESCHAKELDE VOEDING SINGLE OUTPUT 49W 3.3V/15A

MODEL RS-75-3.3

OUTPUT:
DC VOLTAGE 3.3V
RATED CURRENT 15A
CURRENT RANGE 0 ~ 15A
RATED POWER 49.5W
RIPPLE & NOISE (max.) 80mVp-p
OUTPUT VOLTAGE ADJ. RANGE 3 ~ 3.6V
VOLTAGE TOLERANCE +/-3.0%
LINE REGULATION +/-0.5%
LOAD REGULATION +/-1.0%
SETUP, RISE TIME 500ms, 30ms/230VAC
HOLD TIME (Typ.) 60ms/230VAC at full load

INPUT:
VOLTAGE RANGE 88 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY(Typ.) 71%
AC CURRENT (Typ.) 1.2A/230VAC
INRUSH CURRENT (Typ.) COLD START 40A/230VAC
LEAKAGE CURRENT <2mA / 240VAC

PROTECTION:
OVER LOAD 110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is
OVER VOLTAGE 3.8 ~ 4.45V Protection type : Hiccup mode, recovers automatically after fault condition is removed

Dimensions 129*97*38mm (L*W*H)
