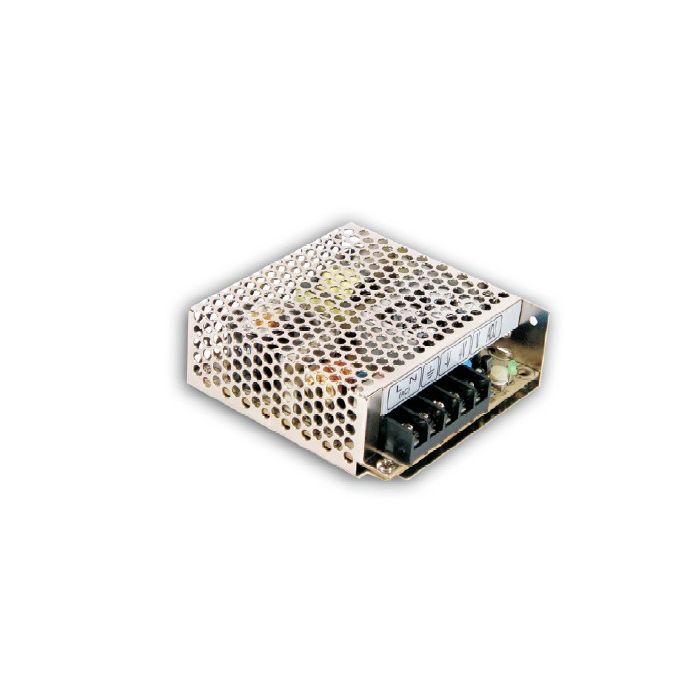

GESCHAKELDE VOEDING SINGLE OUTPUT 52W 24V/2.2A

MODEL RS-50-24

OUTPUT:
DC VOLTAGE 24.0V
RATED CURRENT 2.2A
CURRENT RANGE 0 ~ 2.2A
RATED POWER 52.8W
RIPPLE & NOISE (max.) 120mVp-p
OUTPUT VOLTAGE ADJ. RANGE 22 ~ 27.2V
VOLTAGE TOLERANCE +/-1.0%
LINE REGULATION +/-0.5%
LOAD REGULATION +/-0.5%
SETUP, RISE TIME 500ms, 20ms/230VAC
HOLD TIME (Typ.) 60ms/230VAC at full load

INPUT:
VOLTAGE RANGE 88 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY(Typ.) 84%
AC CURRENT (Typ.) 0.8A/230VAC
INRUSH CURRENT (Typ.) COLD START 33A/230VAC
LEAKAGE CURRENT <2mA / 240VAC

PROTECTION:
OVER LOAD 110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is
OVER VOLTAGE 27.6 ~ 32.4V Protection type : Hiccup mode, recovers automatically after fault condition is removed

Dimensions 99*97*36mm (L*W*H)
