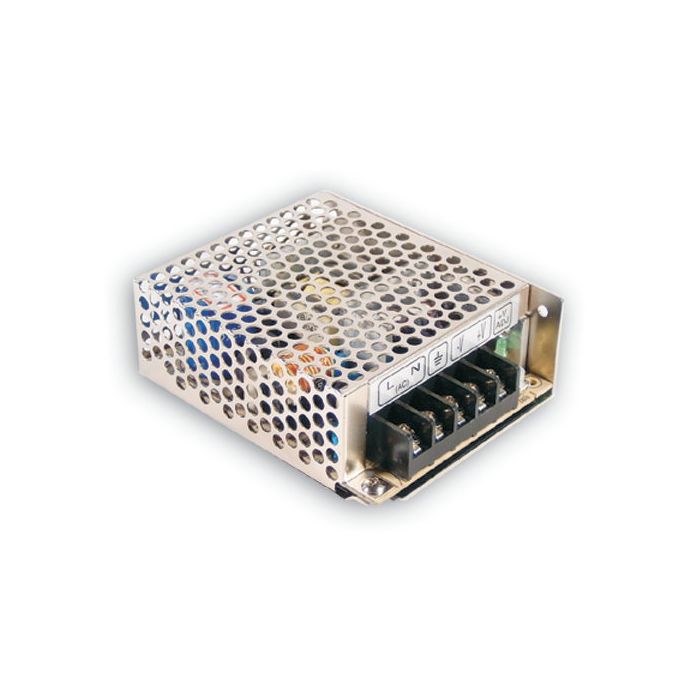

GESCHAKELDE VOEDING SINGLE OUTPUT 35W 3.3V/7A
€ 23,50
€ 19,42
Artikelnummer
RS3503
- ArtikelnummerRS3503
- MerkMEANWELL
- Aantal 3+ € 22,31 € 18,44
Universal AC input / Full range
Protections:Short circuit/Over load/Over voltage
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
All using 105
Withstand 300VAC surge input for 5 second
High operating temperature up to 70
Withstand 5G vibration test
High efficiency, long life and high reliability
MODEL RS-35-3.3
OUTPUT:
DC VOLTAGE 3.3V
RATED CURRENT 7A
CURRENT RANGE 0 ~ 7A
RATED POWER 23.1W
RIPPLE & NOISE (max.) 80mVp-p
OUTPUT VOLTAGE ADJ. RANGE 2.9 ~ 3.6V
VOLTAGE TOLERANCE +/-3.0%
LINE REGULATION +/-0.5%
LOAD REGULATION +/-2.0%
SETUP, RISE TIME 500ms, 30ms/230VAC
HOLD TIME (Typ.) 80ms/230VAC at full load
INPUT:
VOLTAGE RANGE 88 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY(Typ.) 73%
AC CURRENT (Typ.) 0.8A/230VAC
INRUSH CURRENT (Typ.) COLD START 33A/230VAC
LEAKAGE CURRENT <2mA / 240VAC
PROTECTION:
OVER LOAD 110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is
OVER VOLTAGE 3.8 ~ 4.45V Protection type : Hiccup mode, recovers automatically after fault condition is removed
Dimensions 99*82*36mm (L*W*H)
