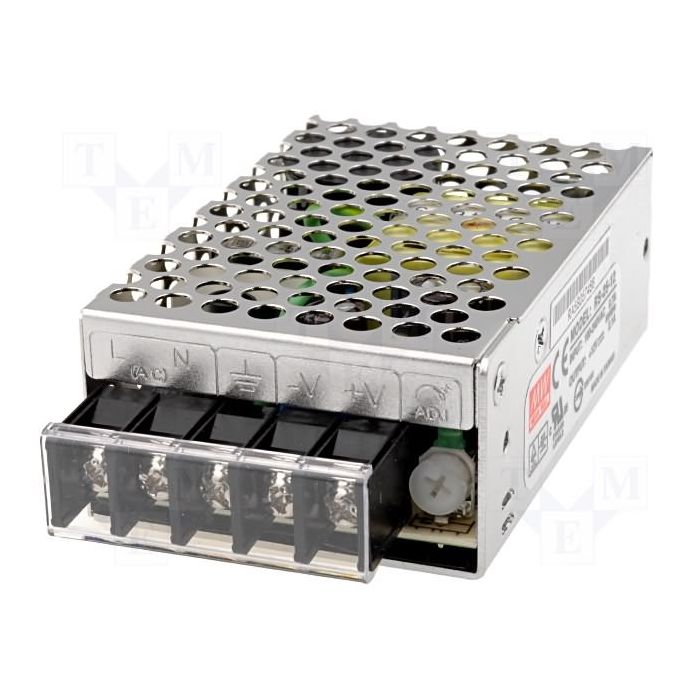

GESCHAKELDE VOEDING SINGLE OUTPUT 25W 12V/2.1A
€ 16,50
€ 13,64
Artikelnummer
RS2512
- ArtikelnummerRS2512
- MerkMEANWELL
- Aantal 3+ € 15,67 € 12,95
OUTPUT:
DC VOLTAGE 12.0V
RATED CURRENT 2.1A
CURRENT RANGE 0 ~ 2.1A
RATED POWER 25.2W
Features
Enclosed case, screw terminals
Universal input
Overload protection, pulsing hiccup shutdown, auto recovery
Protections: short circuit/over load/over voltage
Long life 105°C electrolytic capacitors
Technical Specifications
Input Voltage: 88...264V AC (47...63Hz) 125...373V DC
Input Inrush Current, Max.: 30A
Leakage Current, Max.: 2mA
Output Voltage Adjustment: +10/-5%
Over Load Protection: 110...180%
Withstand Voltage
I/P-O/P: 3000V AC
I/P-FG: 1500V AC
O/P-FG: 500V AC
Operating Temperature: -20...+70°C
Weight: 200g
DC VOLTAGE 12.0V
RATED CURRENT 2.1A
CURRENT RANGE 0 ~ 2.1A
RATED POWER 25.2W
Features
Enclosed case, screw terminals
Universal input
Overload protection, pulsing hiccup shutdown, auto recovery
Protections: short circuit/over load/over voltage
Long life 105°C electrolytic capacitors
Technical Specifications
Input Voltage: 88...264V AC (47...63Hz) 125...373V DC
Input Inrush Current, Max.: 30A
Leakage Current, Max.: 2mA
Output Voltage Adjustment: +10/-5%
Over Load Protection: 110...180%
Withstand Voltage
I/P-O/P: 3000V AC
I/P-FG: 1500V AC
O/P-FG: 500V AC
Operating Temperature: -20...+70°C
Weight: 200g
