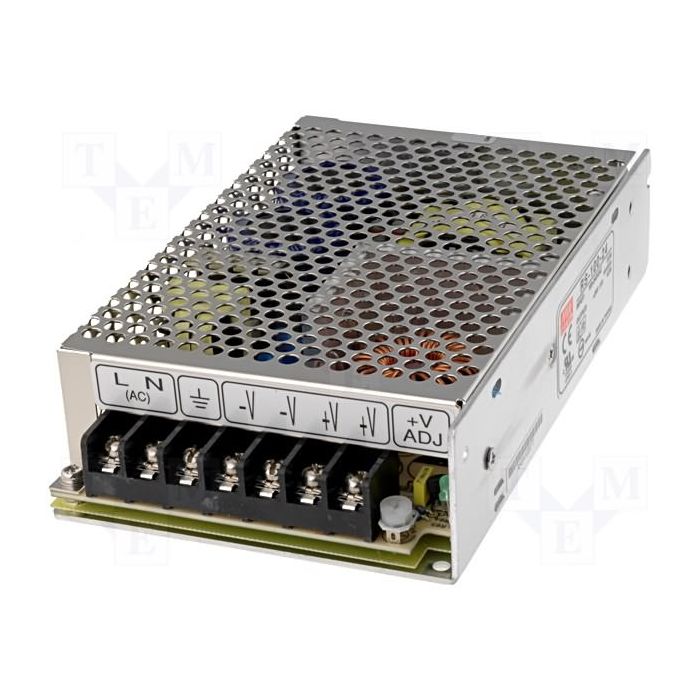

GESCHAKELDE VOEDING SINGLE OUTPUT 108W 24V/4.5A
€ 41,50
€ 34,30
Artikelnummer
RS10024
- ArtikelnummerRS10024
- MerkMEANWELL
- Aantal 3+ € 39,42 € 32,58
Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
All using 105C long life electrolytic capacitors
Withstand 300VAC surge input for 5 second
High operating temperature up to 70
Withstand 5G vibration test
High efficiency, long life and high reliability
OUTPUT:
DC VOLTAGE 24V
RATED CURRENT 4.5A
CURRENT RANGE 0 ~ 4.5A
RATED POWER 105W
RIPPLE & NOISE (max.) 120mVp-p
OUTPUT VOLTAGE ADJ. RANGE 22.8 ~ 26.4V
VOLTAGE TOLERANCE +/-1.0%
INPUT:
VOLTAGE RANGE 88 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
159*97*38mm (L*W*H)
